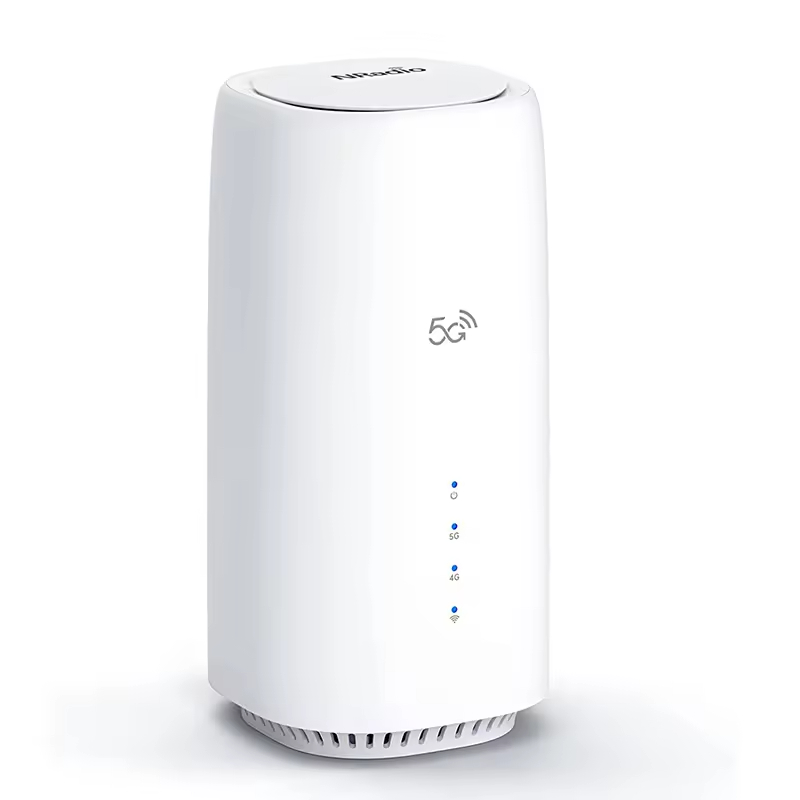

C8 is a new generation of 5G Wi-Fi6 CPE independently developed by NRadio. The 5G Module equipped with C8 is a 5G Sub-6GHz LGA module specially designed for IoT and eMBB applications. It adopts 3GPP Release 15 technology and automatically adapts to 5G NR NSA and SA dual-module networks. It supports both TDD and FDD Mode, compatible with 4G/3G. C8 supports one(1) Gigabit Ethernet WAN port and three(3) Gigabit Ethernet LAN ports, which can realize backup for wired broadband and cellular wireless broadband network access to improve network reliability and stability; with AX1800 Wi-Fi6, the whole device uses 8 high-gain external antennas, including 4 high-gain cellular 5G antennas and 4 high-gain dual-band Wi-Fi antennas, which can effectively solve network coverage problems and widely used in high-definition video, home entertainment and other industries.
Highlights

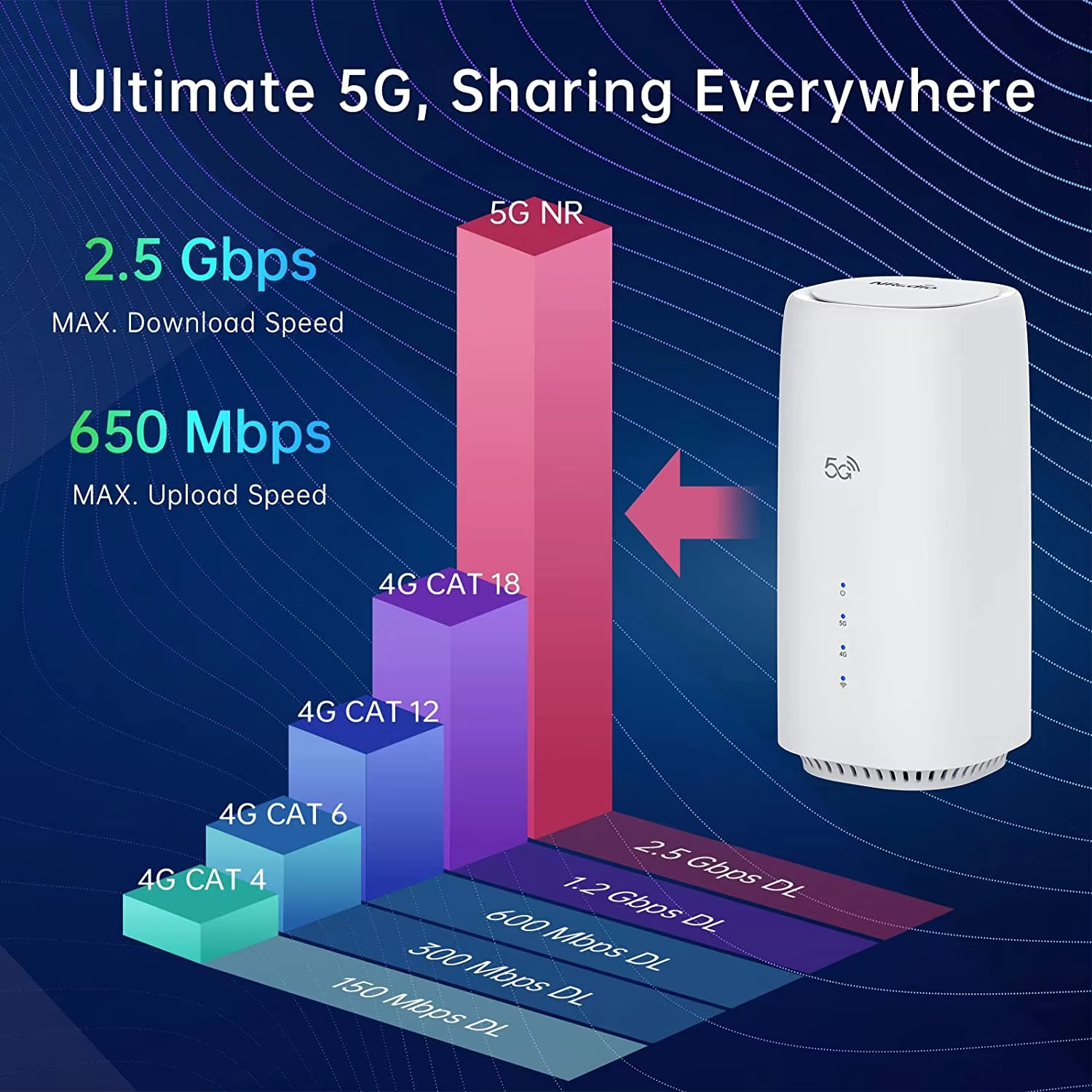

5G Gigabit wireless broadband, SIM card plug and Internet enjoy

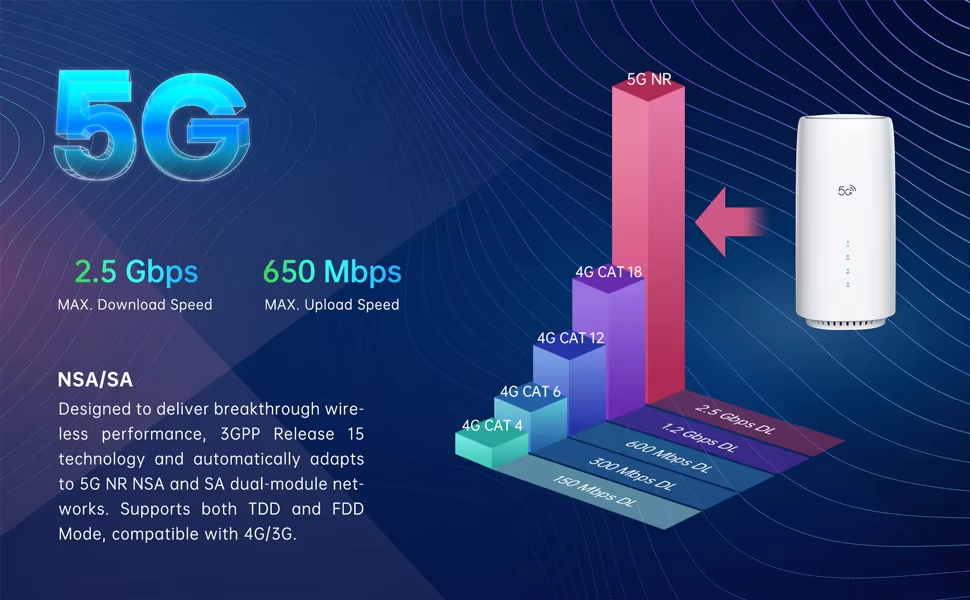

Support 5G SA/NSA dual-mode network, fully compatible with 3G/4G/5G, the download rate is up to 2.5Gbps.
Freedom and convenient
It adopts wireless network access to get rid of the constraints of network cables, telephone lines, and fiber, allowing more freedom in placement and faster temporary construction.

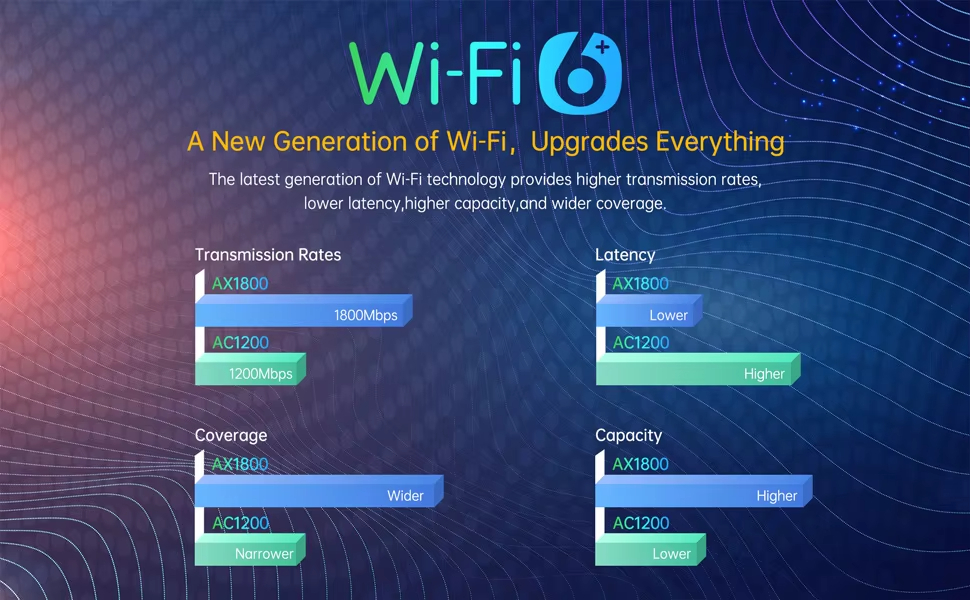

The sixth-generation Wi-Fi technology
It supports 802.11ax, the Wi-Fi throughput rate is up to 1.8Gbps, and it supports MU-OFDMA and WPA3.
Multi-band Mesh networking
Multiple wireless access points can be cascaded or combined with other NRadio N series wireless access point products to achieve flexible and efficient multi-band Mesh networking.
Exclusive Encryption
Effectively prevent Wi-Fi sharing software from leaking passwords, Ensuring information security.

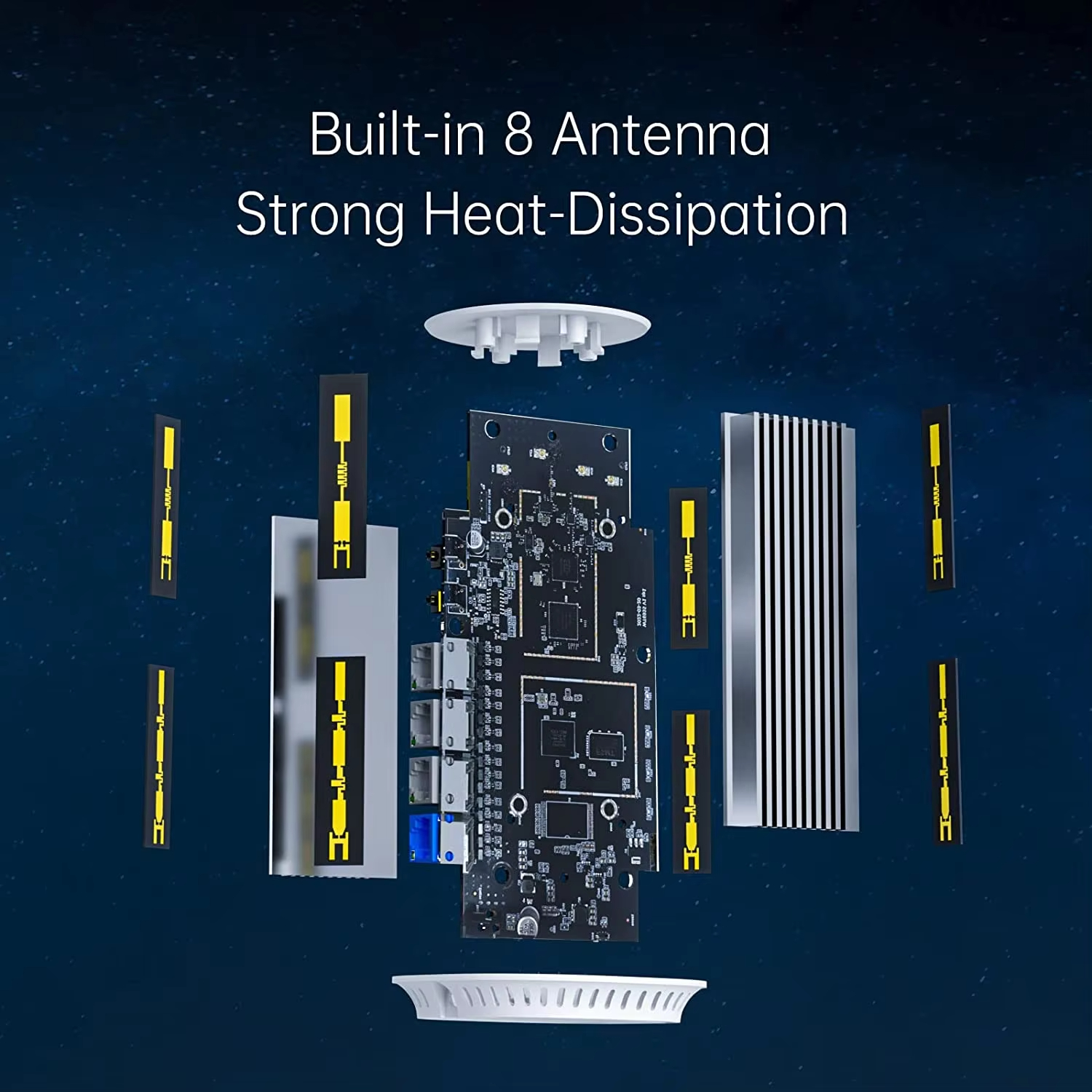

Eight built-in high gain antennas
with 8 high-gain antennas, stronger signal receiving ability and wider Wi-Fi coverage.
Wireless and wired broadband Internet access backup
Wired broadband Internet access first, when wired broadband fails, it will automatically switch to wireless cellular Internet access. After monitoring the recovery of wired broadband, it will automatically switch back to wired broadband Internet access.
VPN remote access
Establish a VPN encrypted tunnel with NRadio H-series AC products. Users accessing the network can directly access the internal network shared resources. The wireless access point comes with a VPN function, which saves customers’ network deployment and maintenance costs.
Key attributes
| function | Voip, FireWall, QoS, VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | WiFi 802.11 ax | application | Home |
| type | CPE | 5G Wi-Fi Transmission Rate | 1300Mbps |
| 2.4g wi-fi transmission rate | 600Mbps | max. lan data rate | 1900Mbps |
| Supports WPS | Yes | Supports WDS | Yes |
| wired transfer rate | 10/100/1000Mbps | lan ports | 3 |
| with modem function | Yes | Encryption Type | WPA2-PSK, WPA2, WPA3, WPA |
| private mold | Yes | standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax |
| products status | New | place of origin | Guangdong, China |
| Brand | NRadio | Chipset | SDX62 |
| Destination Countries | All over the world | 3G WCDMA | B1/ 2/ 4/ 5/ 8/ 19 |
| 5G NR band | Full Bands | 4G LTE FDD BAND | Full Bands |
| 4G LTE TDD BAND | B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 | 5G SA Sub-6 | DL 2.4Gbps; UL 900Mbps |
| 5G NSA Sub-6 | DL 3.4Gbps; UL 550Mbps | 4G RATE | DL 1.6Gbps; UL 200Mbps |
| 3G RATE | DL 42Mbps;UL 5.76Mbps | 0 | 0 |
|
Specifications
|
|
|

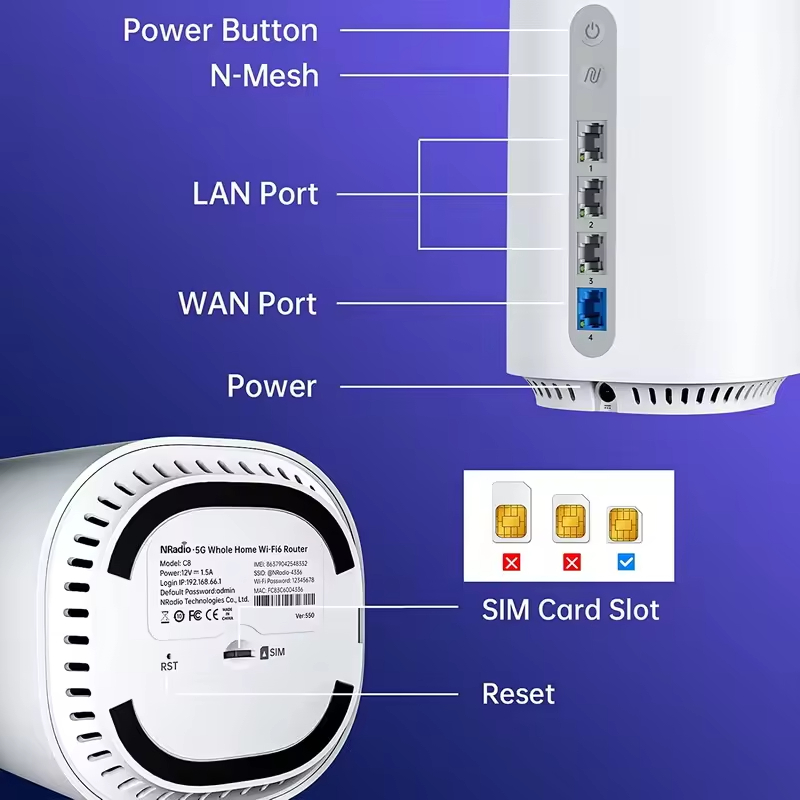

Interface & Ports
|
One (1) GE WAN + Three (3) GE LAN
|
|
Other Ports
|
One DC Jack
One (1)SIM Card Slot
|
|
Button
|
One (1)N-Mesh button, One (1)Power button,One (1)Reset button
|
|
Antenna
|
Eight(8) built-in high gain antennas
|
|
Operation Temperature
|
0~40°C(32°F~104°F)
|
|
Storage Temperature
|
-40~70°C(-40°F~158°F)
|
|
Operation Humanity
|
10%~90% non-condensing
|
|
Storage Temperature
|
5%~95% non-condensing
|
|

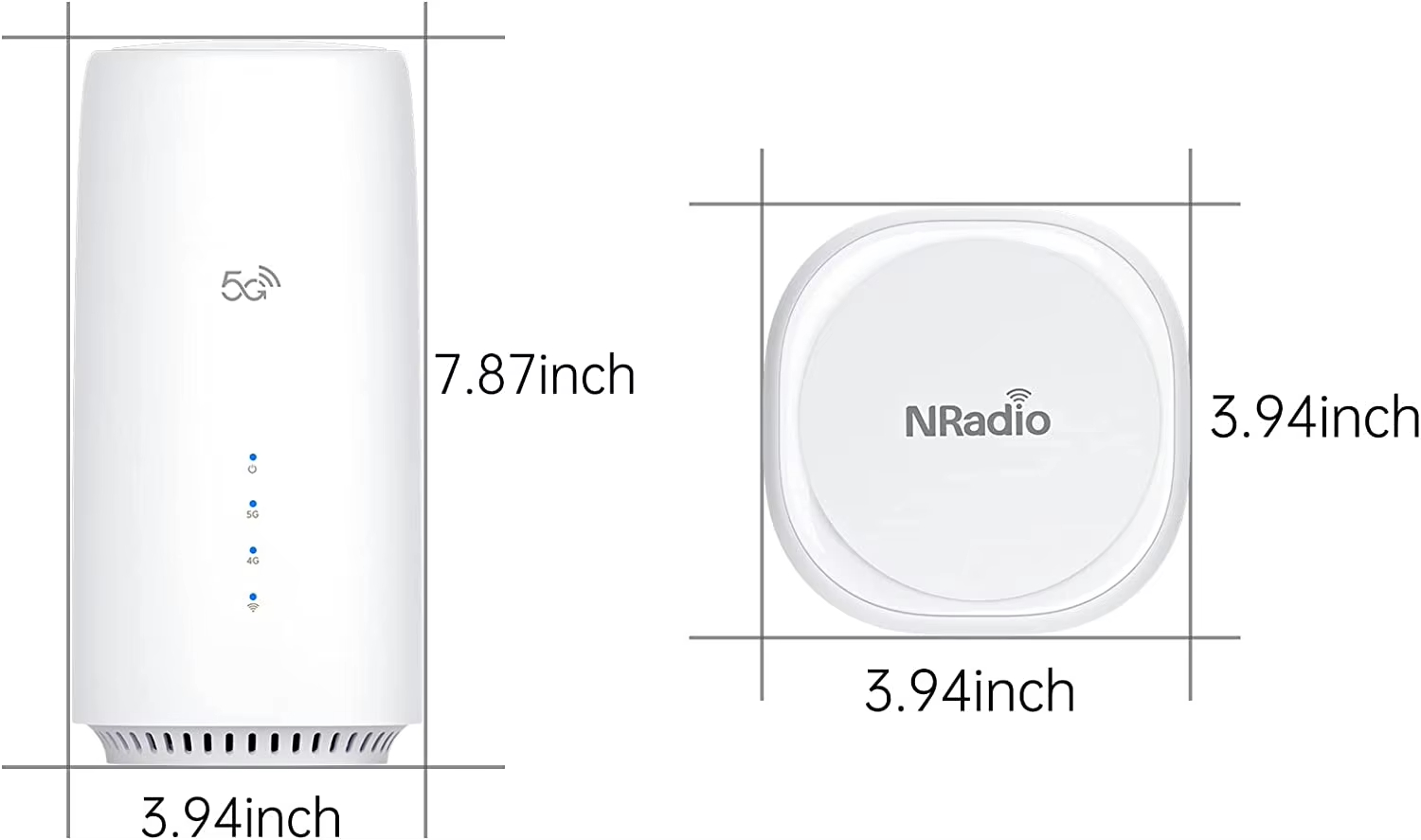

Physical Dimension
|
100*100*200 MM(3.94*3.94*7.88in)
|
|
Total Weight
|
750g
|
|
Lightning protection level
|
2KV
|
|
Typical Power Consumption
|
15W
|
|
Power Supply
|
12V/1.5A
|
|
Wi-Fi
|
|
|
Technical Standard
|
IEEE 802.11a/b/g/n/ac/ax
|
|
Working Frequency
|
2.4GHz-2.483GHz,
5.15-5.25GHz, 5.25GHz-5.35GHz, 5.725GHz-5.850GHz
|
|
Wi-Fi Spatial streams
|
2×2+2×2
|
|
2.4GHz Max. Throughput
|
573Mbps
|
|
5GHz Max. Throughput
|
1201Mbps
|
|
Wi-Fi Max. Associated Clients
|
256
|
|
Modulation technology
|
OFDM: BPSK 6/9Mbps, QPSK12/18Mbps, 16QAM24Mbps, 64QAM48/54Mbps
DSSS: DBPSK1Mbps, DQPSK2Mbps, CCK5.5/11Mbps
MIMO-OFDM: MCS 0-31
MIMO-OFDM (11ac): MCS 0-9
MIMO-OFDMA (11ax): MCS 0~9
|
|
Cellular
|
|
|
Module solution
|
Qualcomm X62
|
|
5G NR
|
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
|
|
LTE-FDD
|
B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
|
|
LTE-TDD
|
B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
|
|
LAA
|
B46
|
|
WCDMA
|
B1/ 2/ 4/ 5/ 8/ 19
|
|
GNSS
|
GPS/ GLONASS/ BDS/ Galileo
|
|
5G SA Sub-6
|
DL 2.4Gbps; UL 900Mbps
|
|
5G NSA Sub-6
|
DL 3.4Gbps; UL 550Mbps
|
|
LTE
|
DL 1.6Gbps; UL 200Mbps
|
|
WCDMA
|
DL 42Mbps;UL 5.76Mbps
|
|
Software Function
|
|
|
Channel adjustment
|
Support
|
|
Power adjustment
|
Support
|
|
Mesh
|
Support NRadio N-Mesh networking function
|
|
Power adjustment
|
Support
|
|
RF timing ON/OFF
|
Support
|
|
Access restrictions
|
Support
|
|
SSID hidden
|
Support
|
|
Load balancing
|
Support
|
|
Speed limitation
|
Support
|
|
Encryption
|
Open/WPA2
|
|
Black and white list
|
Support
|
|
User isolation
|
Support
|
|
Bandwidth limit
|
Support
|
|
STA related
|
Support
|
|
DHCP
|
Support
|
|
Access point VPN
|
Support
|
|
NRadio Cloud
|
Support NRadio Connection and realize remote management.
|
|
Roaming agreement
|
Support 802.1k/v/r
|
|
Guest network
|
Support
|
|
Wireless bridge
|
Support
|
|
Network port settings
|
Support
|
|
Account management
|
Support
|
|
Network diagnostics
|
Support
|
