Key attributes
| function | FireWall | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | 802.11ac | application | Outdoor |
| type | Wireless | 5G Wi-Fi Transmission Rate | 2167Mbps |
| 2.4g wi-fi transmission rate | 600Mbps | max. lan data rate | 1300Mbps |
| Supports WPS | Yes | Supports WDS | No |
| wired transfer rate | 10/100/1000Mbps | lan ports | 1 |
| WAN Ports | 1 x10/100/1000Mbps | with modem function | No |
| Encryption Type | WPA2-PSK, WPA-PSK, WPA | private mold | Yes |
| standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax | products status | New |
| place of origin | Guangdong, China | Product name | 5G outdoor CPE Router |
| SIM card slot | 1 SIM Card Support | Keywords | High Speed 5G Wifi Router |
| Frequency 5g | n78/n77/n41/n38 | Feature | 5G LTE Router Sim Card |
| Speed 5g | 1.5 Gbit/s | Product Type | 5G Wireless CPE Router |
| Network mode | LTE/5G | Keywords 1 | LTE 5G Outdoor CPE Router |
| Working Mode | Router Mode |

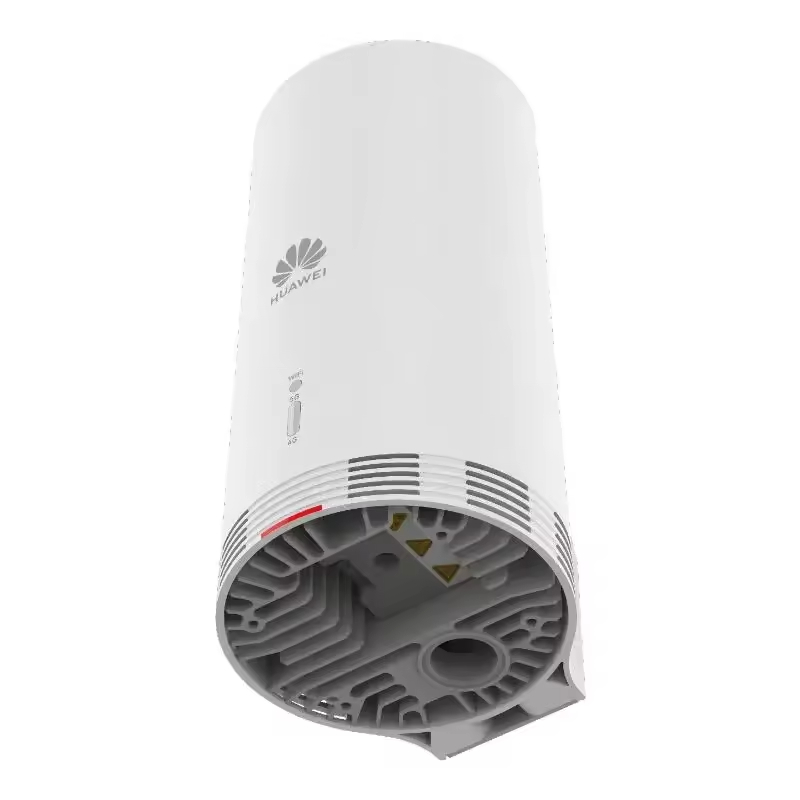

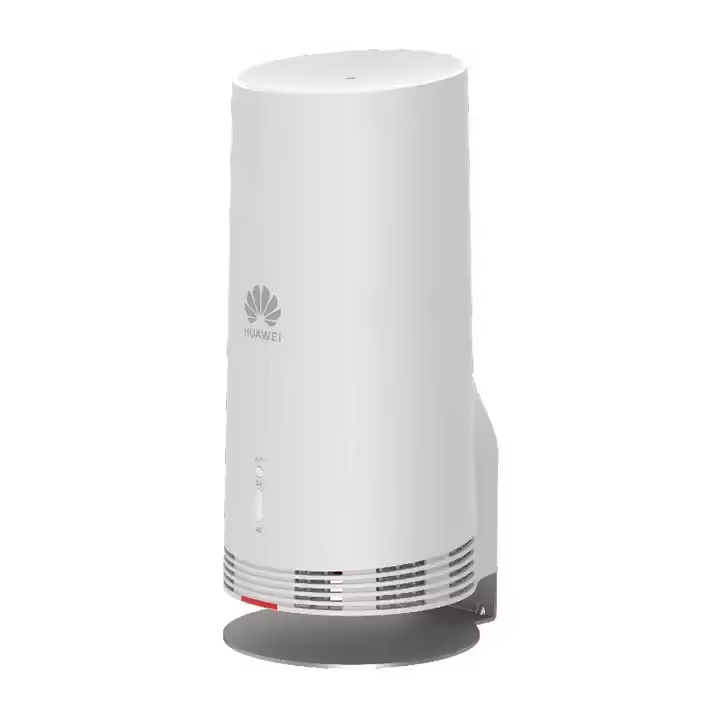

Huawei 5G CPE N5368X Specifications:
* Product type:5G Outdoor CPE
* Operating Frequency bands:
–5G NR: n78/n77/n41/n38
– LTE FDD: Band 1/Band 3/Band 7/Band 8/Band 20/Band 28
– LTE TDD: Band 38/Band 40/Band 41/Band 42/Band 43
– WLAN: 2.4 GHz/5 GHz
– Note: The supported operating frequency bands vary with areas. The n78 frequency band range is 3400–3800 MHz.
* Maximum Transmit Power:
– 5G NSA: 23 dBm@1T
– 5G SA: 26 dBm@2T
– LTE: 23 dBm
– ODU WLAN 5G: 14 dBm
– ODU WLAN 2.4G: 16 dBm
– Note: The supported WLAN maximum conducted transmit power varies with areas.
* Vendor Model: HW-190126D0D
* Output Voltage: 19 V ± 5%
* Output Power: 24 W
* High Data Rate and Larg Bandwidth :
– For NSA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 110 Mibit /s in the Uplink
– For SA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 220 Mibit /s in the Uplink
* High–Rate WLAN Access “Routing Mode”:
– A Maximum of 32 device can be connected at 2.4 GHZ and 5GHZ Bands
– A Maximum of 300 Mbits /s with IEEE 802 .11n at 2.4 GHZ
– A Maximum of 867 Mbit/s with IEEE 802.11ac at 5GHZ

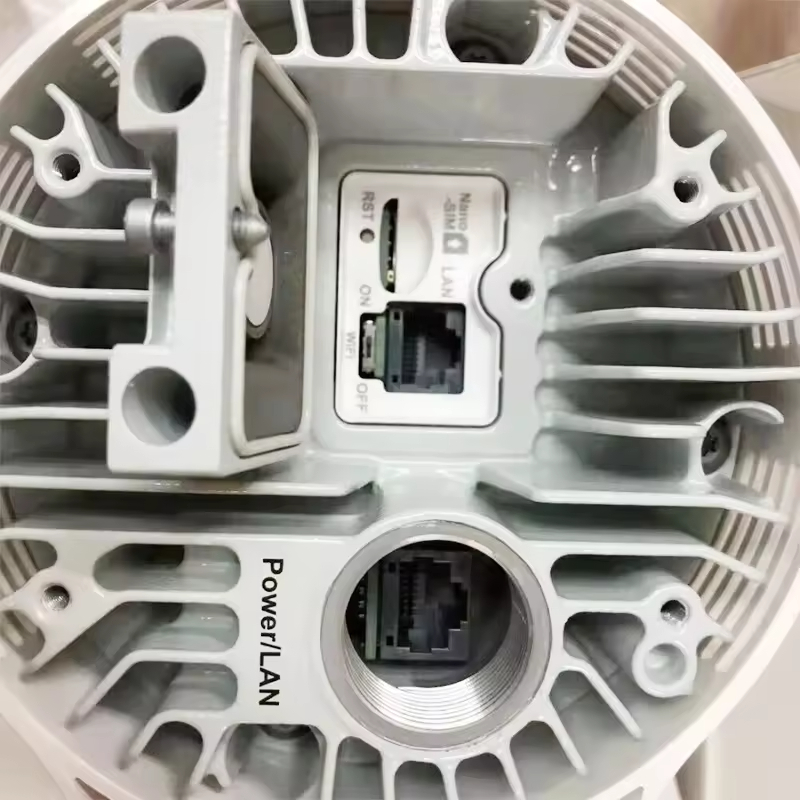

* Interfaces:
– 1 x NANO SIM card slot
– 1 x LAN port
– 1 x Power/LAN port
* Support IP address, MAC address, URL filtering
* What’s included:
– 1 x N5368X CPE

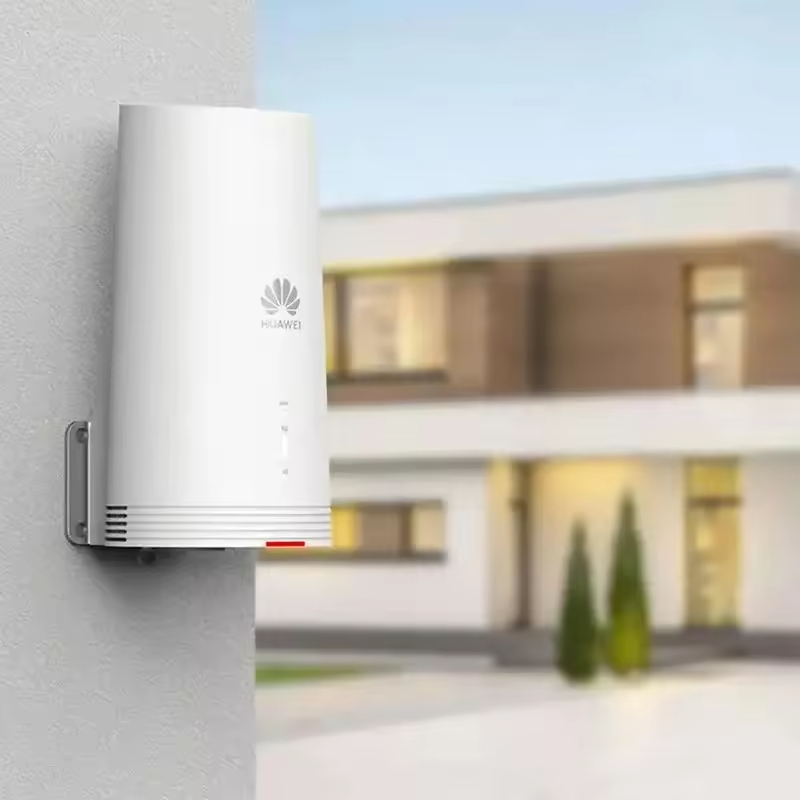

– 1 x Outdoor-oriented mounting bracket(including bolts)
– 1 x Indoor Fixed-length Ethernet cable

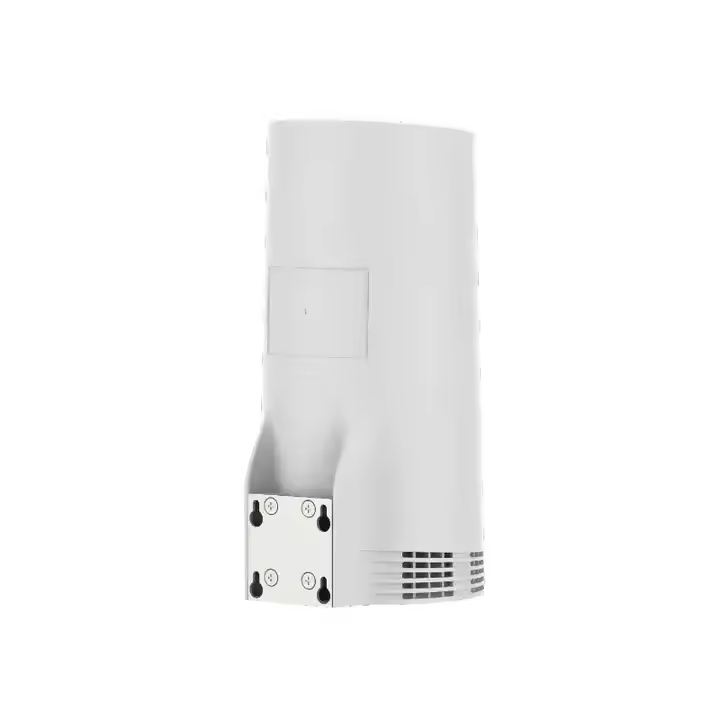

– 1 x Indoor-oriented mounting bracket
– 1 x Waterproof PG connector
– 2 x Hose Clamp
– 1 x Quick Start
