Key attributes
| function | Voip, FireWall, QoS, VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | WiFi 802.11 ax | application | Multi-service |
| type | Wireless | 5G Wi-Fi Transmission Rate | 2167Mbps |
| 2.4g wi-fi transmission rate | 300 Mbps | max. lan data rate | 1900Mbps |
| Supports WPS | Yes | Supports WDS | No |
| wired transfer rate | 10000Mbps | lan ports | 2 |
| WAN Ports | 1 | with modem function | No |
| Encryption Type | WPA2-PSK, WPA2, WPA3 | private mold | Yes |
| standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n | products status | New |
| place of origin | Guangdong, China | Products Status | Stock |
| Color | White | Support RJ11 | VOLTE |
| Type | WLAN | Network mode | 5G/4G/3G |
| 5G Speed | 7.2Gbps | 5G Band | n1/3/5/7/20/28/71/38/40/41/77/78/79 |
| Certification | CE,FCC | Model | H158-381 |
Key Features:
Compatible with 5G frequencies in NSA and SA mode (Non Stand alone and Stand Alone) in bands n1/3/5/7/20/28(703 – 3 MHz(UL)/758 – 788 MHz(DL) ))/71 TDD /38/40(2300-2390 MHz)/41/77/78/79 and 4G in bands B1/3/5/7/8/18/19/20/26/28/32/ 34/38/39/40(2300-2390MHz)/41/42/43
In 5G, download up to 5.4 Gbps and upload up to 500 mbps (depending on the operator’s network), D L MI MO 4×4: n1/3/7/38/40/41/77/78 /79.5G 2×2 MI MO; n5/8/20/28/71; U L MI MO 2×2: n38/41/77/78/79, D L/U L 256QAM
In 4G, Category 20,256 QAM download up to 2 Gbps and upload up to 150 mbps (depending on operator network), aggregation up to 5 frequencies at a time. LTE 4×4 B1/3/7/38/39/40/41/42/43, LTE 2×2 B5/8/20/28/32/34and 3G are not supported on this model.
Wi-Fi 6 AX7200 4×4 MI MOÂ 802.11a/b/g/n/ac/axin 2 bands, 4Ghz and 5Ghz up to 128 connected users. WPA3 compatible
12dBi 5G NR internal antenna.
No antenna port for 5G external antenna connection
2 RJ45 ports: 1 port with a maximum speed of 1 Gigabit, and a great novelty the other port with a maximum speed of 2.5 Gigabit/s
1 RJ11 port for analog or DECT telephone, to make and receive calls by configuring a VoIP/SIP account in the interface
Complete interface for experts: Bridge mode, IP and MAC address reservation, Frequency selection, Router IP change, Guest WiFi mode, DDNS, Integrated L2TP PPTP VPN client, supports SMS reception and transmission…
Information page with Cellid, RSRP, RSRQ and SINR to know the signal strength and the transmitter you are depending on.

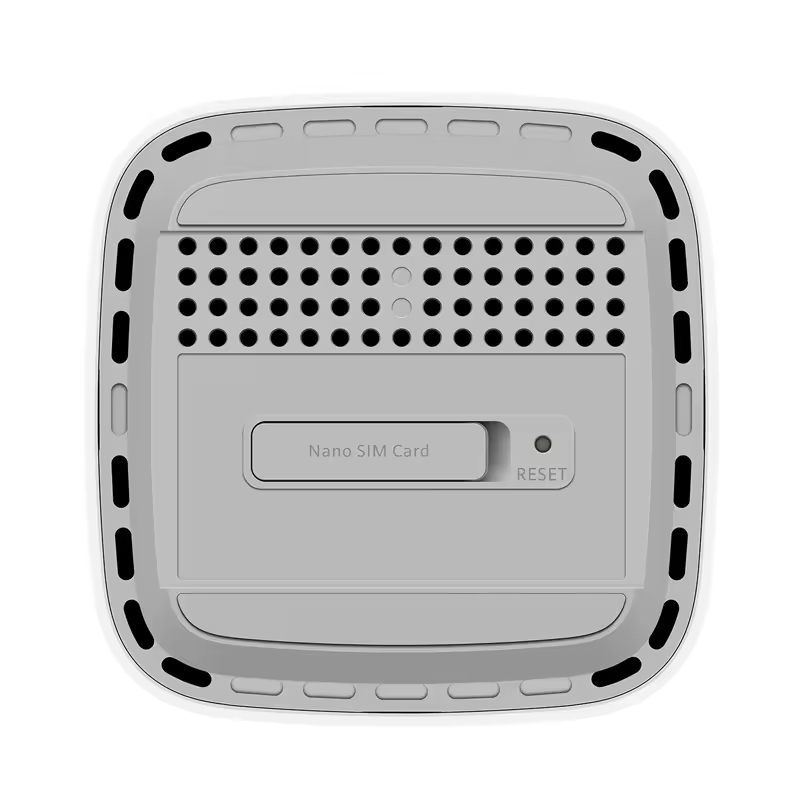

Slot for Na noSIM 4FF sim card, 1 Power button, 1 WPS button, 1 RESET button, 1 5G LED, 1 4G LED, 1 Status LED.
Dimensions (cm): 10.3 x 10.3 x 22.6 (h)
Router weight: 915g, Color White
Maximum consumption: < 24W , Operating temperature: 0°C to 40°C, storage temperature: -20°C to +70°C
Possibility to use the AI Life application available via Hicloud, AppGallery or Store.
1 x EU standard 12V 3A power charger, 1 x H158-381 router (made by , Brovi brand, Zowee Technology Heyuan) 5G CPE PRO 5. Multi-language router interface, French manual. After-sales service in French offered by us. 24 month warranty
FAQ
Q1: Can I order a sample to check the quality?
A1: Why not? Before making any big order,there must be samples for quality inspection andtesting whether they can be used locally.
Q2: What’s your warranty policy?
A2:12 months.Before delivery, we will do 100% confirm all the details with you and do testworking in case any unexpected problems.
Q3: What’s your minimum OEM or ODM order quantity?
A3: Our MOQ is based on different items. Small orders are also welcome,but the unit price isalso difference from wholesale price.
Q4: What’s the delivery time?
A4: Samples are in stock,can be sent within 1-5 days.
