Key attributes
| function | FireWall | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | 802.11ac | application | Outdoor |
| type | Wireless | 5G Wi-Fi Transmission Rate | 2167Mbps |
| 2.4g wi-fi transmission rate | 600Mbps | max. lan data rate | 1300Mbps |
| Supports WPS | Yes | Supports WDS | No |
| wired transfer rate | 10/100/1000Mbps | lan ports | 1 |
| WAN Ports | 1 x10/100/1000Mbps | with modem function | No |
| Encryption Type | WPA2-PSK, WPA-PSK, WPA | private mold | Yes |
| standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax | products status | New |
| place of origin | Guangdong, China | Product name | 5G outdoor CPE Router |
| SIM card slot | 1 SIM Card Support | Keywords | High Speed 5G Wifi Router |
| Frequency 5g | n78/n77/n41/n38 | Feature | 5G LTE Router Sim Card |
| Speed 5g | 1.5 Gbit/s | Product Type | 5G Wireless CPE Router |
| Network mode | LTE/5G | Keywords 1 | LTE 5G Outdoor CPE Router |
| Working Mode | Router Mode | ||
Huawei 5G CPE N5368X Specifications:
* Product type:5G Outdoor CPE
* Operating Frequency bands:
-5G NR: n78/n77/n41/n38
– LTE FDD: Band 1/Band 3/Band 7/Band 8/Band 20/Band 28
– LTE TDD: Band 38/Band 40/Band 41/Band 42/Band 43
– WLAN: 2.4 GHz/5 GHz
– Note: The supported operating frequency bands vary with areas. The n78 frequency band range is 3400–3800 MHz.
* Maximum Transmit Power:
– 5G NSA: 23 dBm@1T
– 5G SA: 26 dBm@2T
– LTE: 23 dBm
– ODU WLAN 5G: 14 dBm
– ODU WLAN 2.4G: 16 dBm
– Note: The supported WLAN maximum conducted transmit power varies with areas.
* Vendor Model: HW-190126D0D
* Output Voltage: 19 V ± 5%
* Output Power: 24 W
* High Data Rate and Larg Bandwidth :
– For NSA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 110 Mibit /s in the Uplink
– For SA Network : A PS “ Packet Switched rate of up to 1.5 Gbit/s in Download and 220 Mibit /s in the Uplink
* High–Rate WLAN Access “Routing Mode”:
– A Maximum of 32 device can be connected at 2.4 GHZ and 5GHZ Bands
– A Maximum of 300 Mbits /s with IEEE 802 .11n at 2.4 GHZ
– A Maximum of 867 Mbit/s with IEEE 802.11ac at 5GHZ

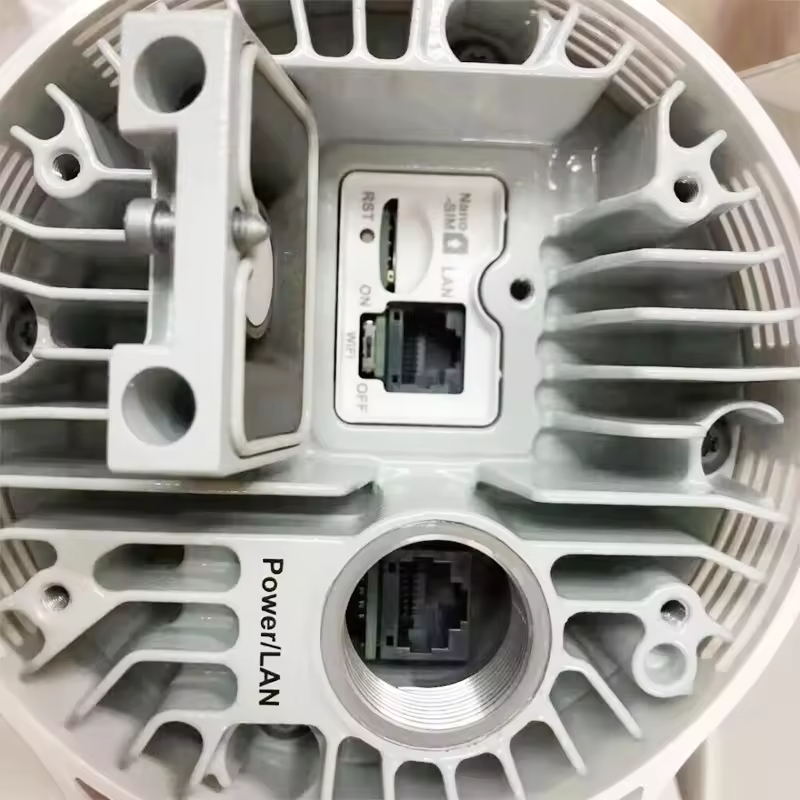

* Interfaces:
– 1 x NANO SIM card slot
– 1 x LAN port
– 1 x Power/LAN port
* Support IP address, MAC address, URL filtering
* What’s included:
– 1 x N5368X CPE
– 1 x Outdoor-oriented mounting bracket(including bolts)
– 1 x Indoor Fixed-length Ethernet cable
– 1 x Indoor-oriented mounting bracket
– 1 x Waterproof PG connector
– 2 x Hose Clamp
– 1 x Quick Start
FAQ
1. who are we?
We are based in Hunan, China, start from 2020,sell to North America(30.00%),Mid East(20.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
4G CPE Router, 4G MIFI Router, 4G WIFI Router, 5G CPE Router, 5G MIFI Router
4. why should you buy from us not from other suppliers?
We have industry-leading R & D laboratory, advanced experimental equipment and testing environment, modern production equipment, large-scale production base and strong product production and supply capacity.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
