Key attributes
| function | VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | 802.11n | type | Wireless |
| 5G Wi-Fi Transmission Rate | 2167Mbps | 2.4g wi-fi transmission rate | 1200 Mbps |
| max. lan data rate | 1900Mbps | Supports WPS | Yes |
| Supports WDS | No | wired transfer rate | 4000Mbps |
| lan ports | 3 | WAN Ports | 1 |
| with modem function | No | Encryption Type | WPA2-PSK, WPA2, WPA, WEP |
| private mold | No | standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b |
| products status | New | place of origin | Guangdong, China |

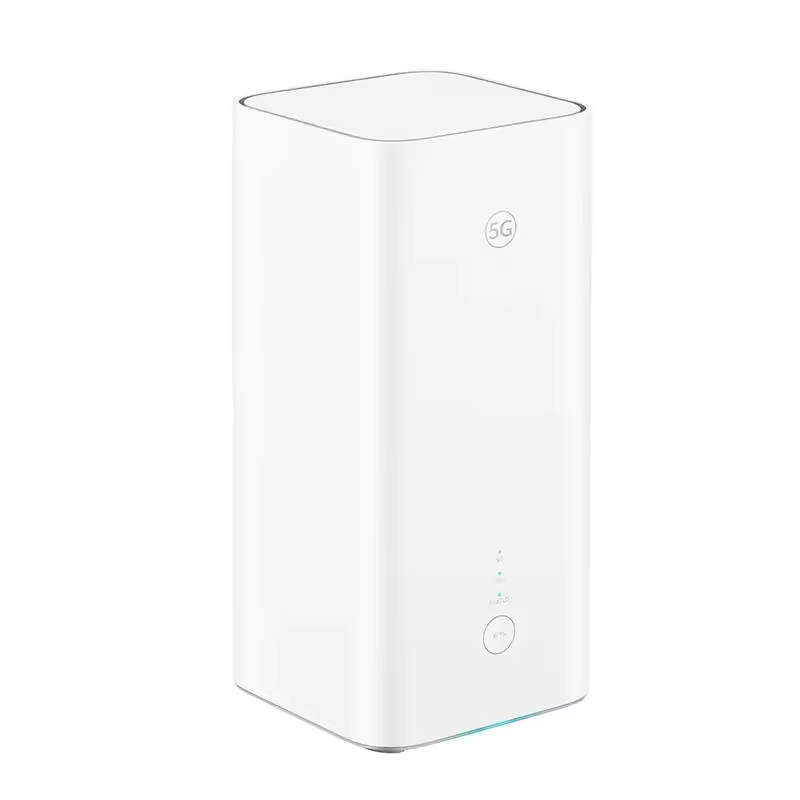

| Product name | H158-381 5G CPE Pro 5 Router | SIM card slot | 1 SIM Card Slots |
| Item Name | 5G CPE Pro 5 H138-381 | Model | H158-381 |
| Frequency | FDD n1/3/5/7/8/20/28 TDD n38/40/41/77/78/79 | Keywords | 5G CPE Pro 5 |
Highlights
WiFi 6, compatible with 802.11b/g/n/a/ac/ax
Wireless Frequency Band: 2.4GHz & 5GHz, dual-band auto-selection
Applicable Network: 5G / LTE
1 x Gigabit WAN/LAN Ethernet port (RJ45)
1 x Gigabit LAN Ethernet port (RJ45)
5G Band :
FDD:n1/3/5/7/8/20/28
TDD:n38/40/41/77/78/79
SUL:n80/81/82/83/84
SDL: n75
 4G Band :
TDD: 20/40/50/60/
70/80/90/100MHz
FDD: 50/40/30/20/15/10/5MHz
Note: Different frequency bands support different bandwidths
Compatible with 5G frequencies in NSA and SA mode (Non Stand alone and Stand Alone) in bands n1/3/5/7/20/28(703 – 733 MHz(UL)/758 – 788 MHz(DL) ))/71 TDD /38/40(2300-2390 MHz)/41/77/78/79 and 4G in bands B1/3/5/7/8/18/19/20/26/28/32/ 34/38/39/40(2300-2390MHz)/41/42/43
In 5G, download up to 5.4 Gbps and upload up to 500 mbps (depending on the operator’s network), DL MIMO 4×4: n1/3/7/38/40/41/77/78 /79.5G 2×2 MIMO; n5/8/20/28/71; UL MIMO 2×2: n38/41/77/78/79, DL/UL 256QAM
In 4G, Category 20 256 QAM download up to 2 Gbps and upload up to 200 mbps (depending on operator network), aggregation up to 5 frequencies at a time. LTE 4×4 B1/3/7/38/39/40/41/42/43, LTE 2×2 B5/8/20/28/32/34
2G and 3G are not supported on this model.
Wi-Fi 6 AX3000 2×2 MIMO 802.11a/b/g/n/ac/ax in 2 bands, 4Ghz and 5Ghz up to 128 connected users.
11dBi high gain 5G NR internal antenna.
No antenna port for 5G external antenna connection

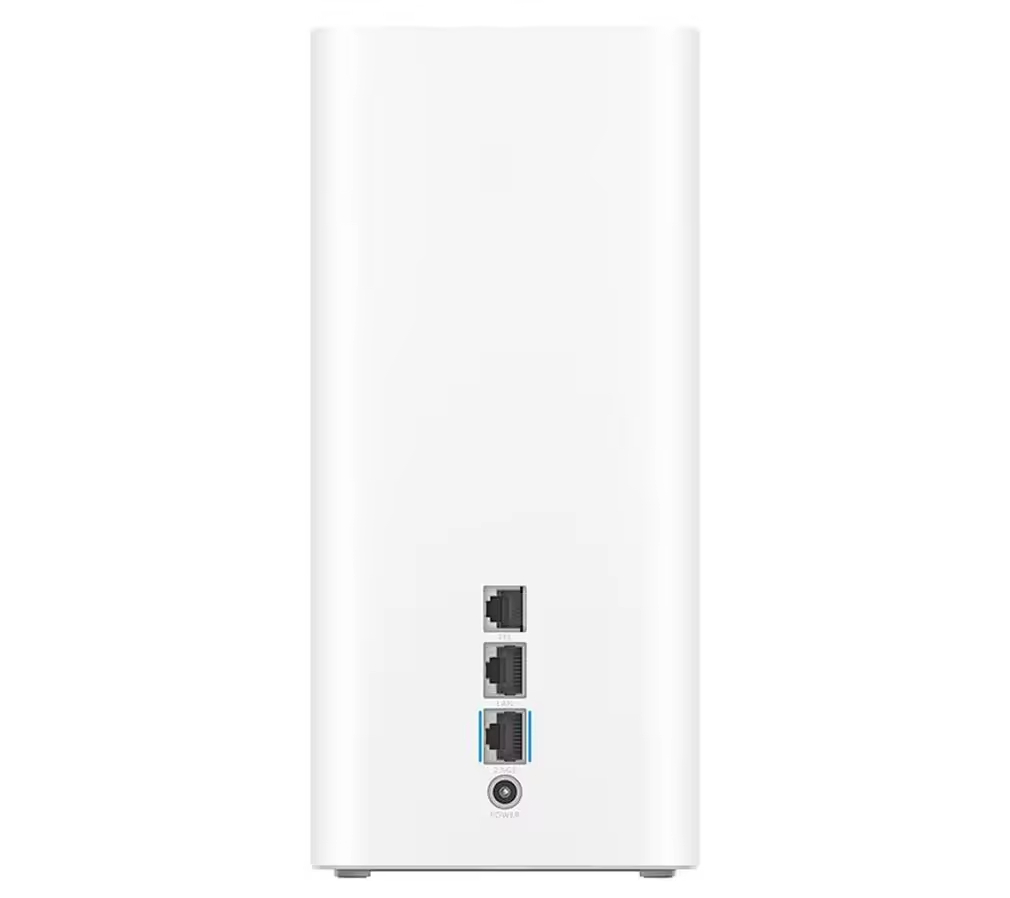

2 Gigabit RJ45 ports.
Complete interface for experts: Bridge mode, IP and MAC address reservation, Frequency selection, Router IP change, Guest WiFi mode, DDNS, Integrated L2TP PPTP VPN client, supports SMS reception and transmission…
Information page with Cellid, RSRP, RSRQ and SINR to know the signal strength and the transmitter you are depending on.

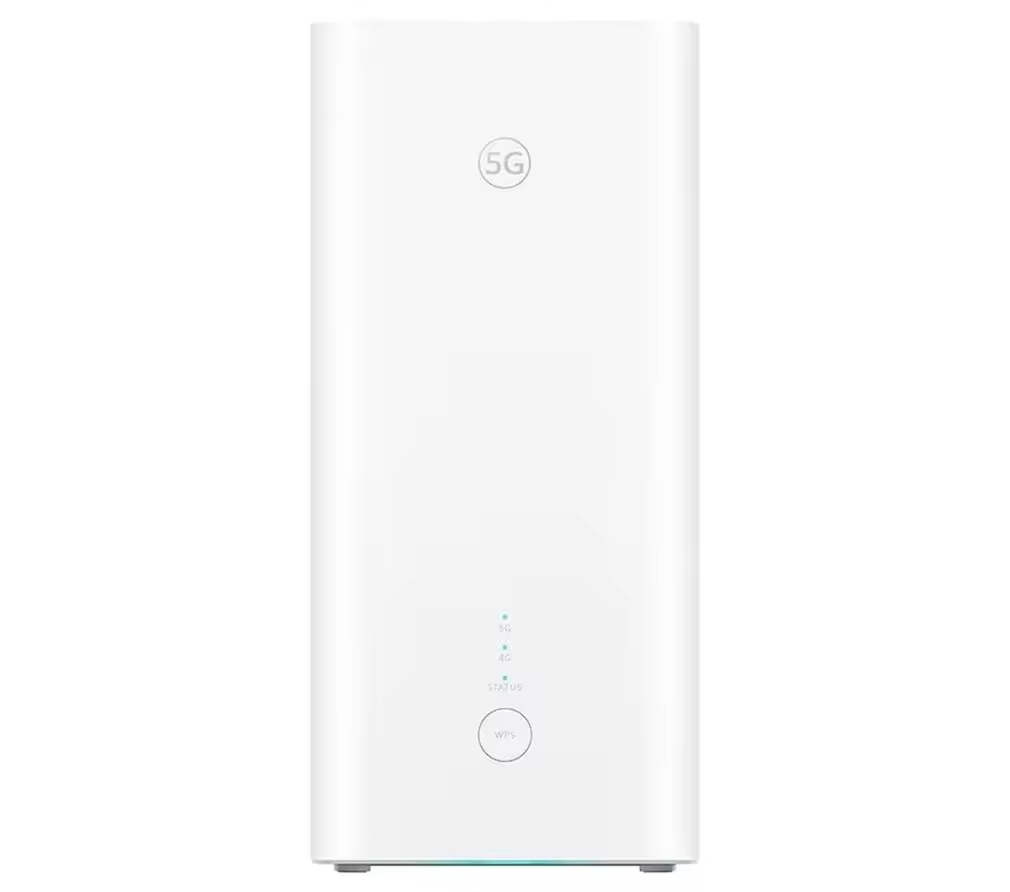

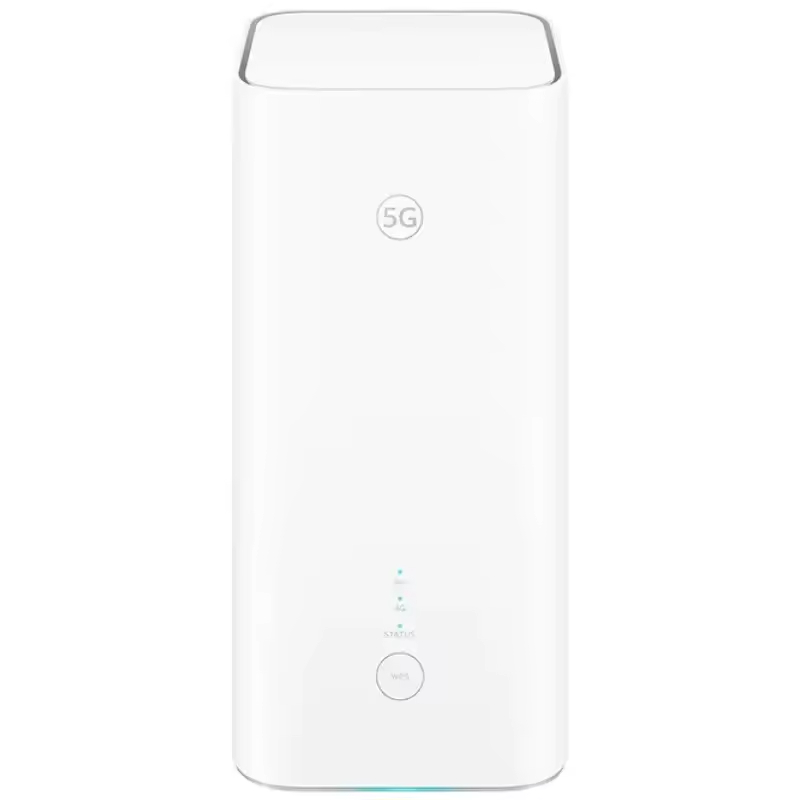

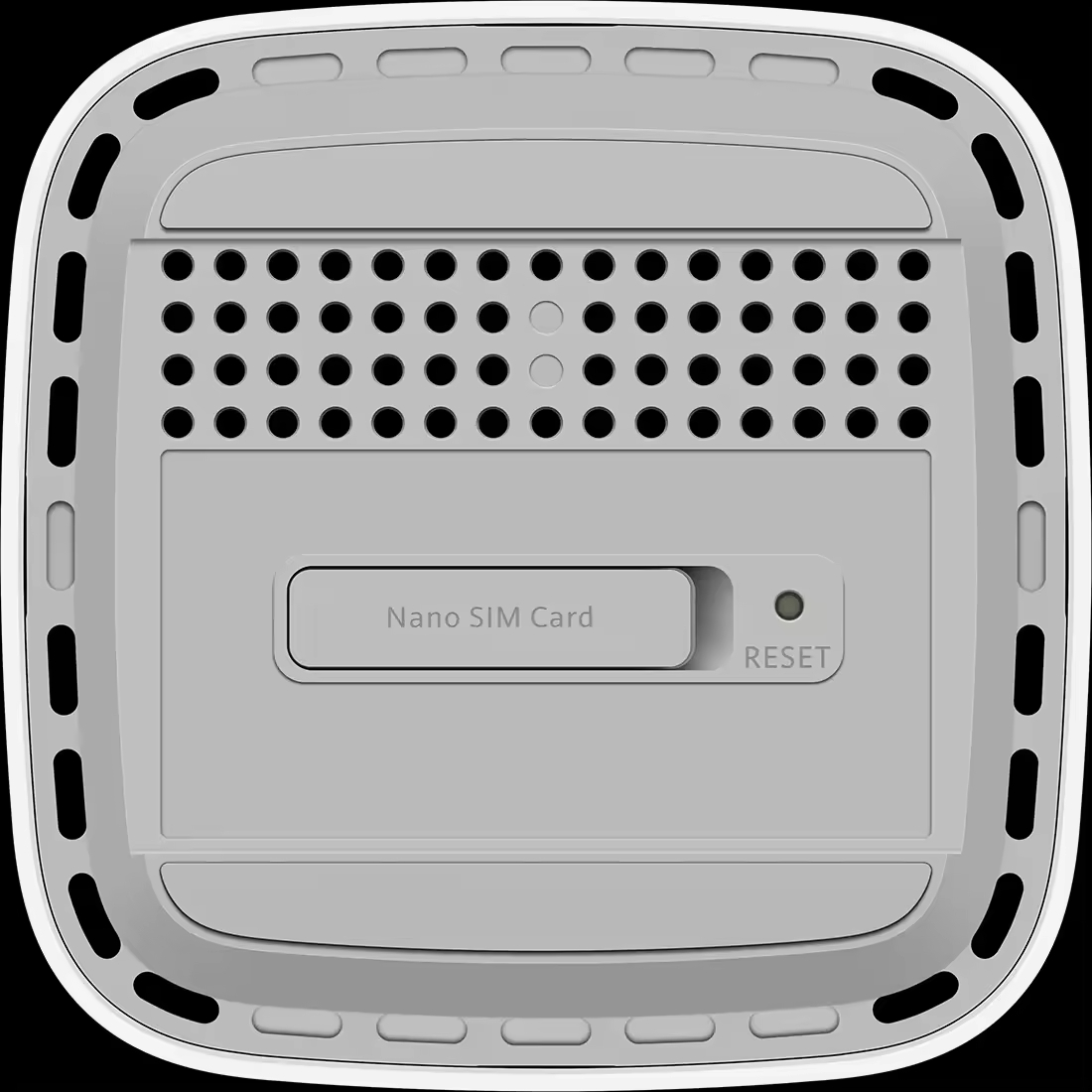

Slot for NanoSIM 4FF sim card, 1 Power button, 1 WPS button, 1 RESET button, 1 5G LED, 1 4G LED, 1 Status LED.
Dimensions (cm): 10.3 x 10.3 x 22.6 (h)
Router weight: 915g, Color White
Maximum consumption: < 24W , Operating temperature: 0°C to 40°C, storage temperature: -20°C to +70°C
Possibility to use the Huawei AI Life application available via Hicloud, AppGallery or Apple Store.
