IP67 waterproof and dustproof rating
Meets IP67 waterproof and dustproof rating requirements, and is not afraid of dust and rainwater intrusion. level 6KV, cold and heat resistance -40 ℃ C-55 ℃. Suitable for network requirements in building office, outdoor monitoring, agriculture, forestry, animal husbandry, fishing, field operations and other scenarios.
High gain cellular antenna: enhancing 5G/4G s
By adopting directional and omnidirectional hybrid antenna technology, 360° coverage is achieved, with a 20% increase in base station rate, a cellular antenna gain of up to 10dBi, and a 30% increase in base station coverage range.
Large capacity storage
1GB DDR4 memory and 1GB flash memory meet the requirements of high-speed caching and large-scale data processing.

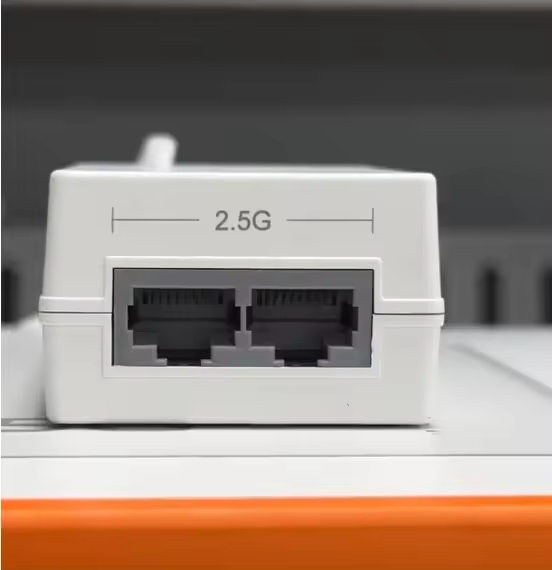

2.5G Ethernet port
High speed access ensures high-speed network
Equipped with 2.5G Ethernet port as standard, supporting speeds up to 2.5Gbps, efficient transmission ensures stable large data
streams.
remote power supply
adapter/ switch for remote power supply, supporting a maximum transmission of 100 meters.(This product list includes a 10 meter Ethernet cable length and does not include switches.)
Easy installation, adaptable to various application environments

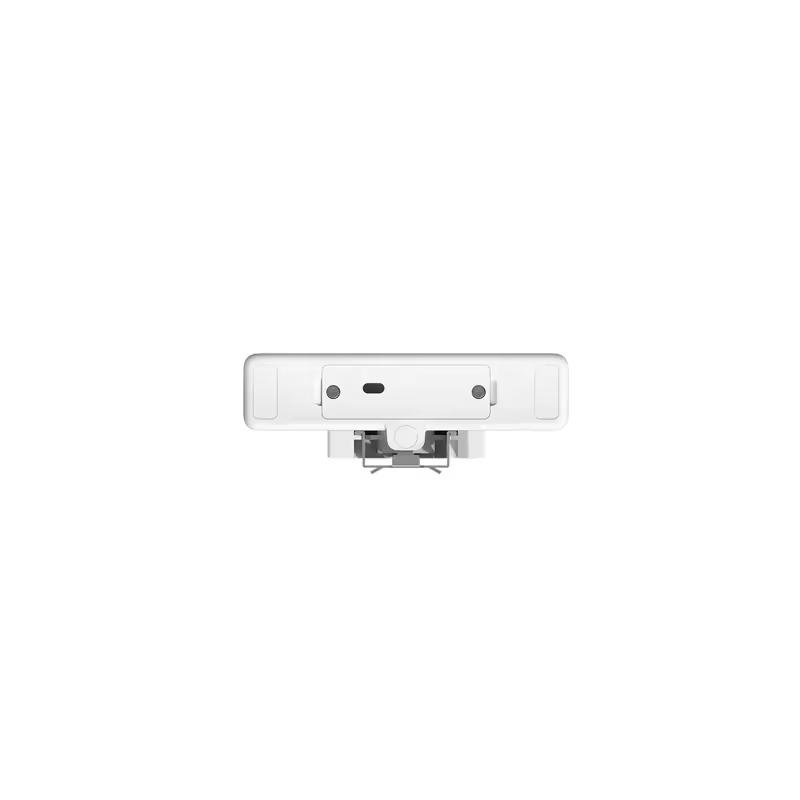

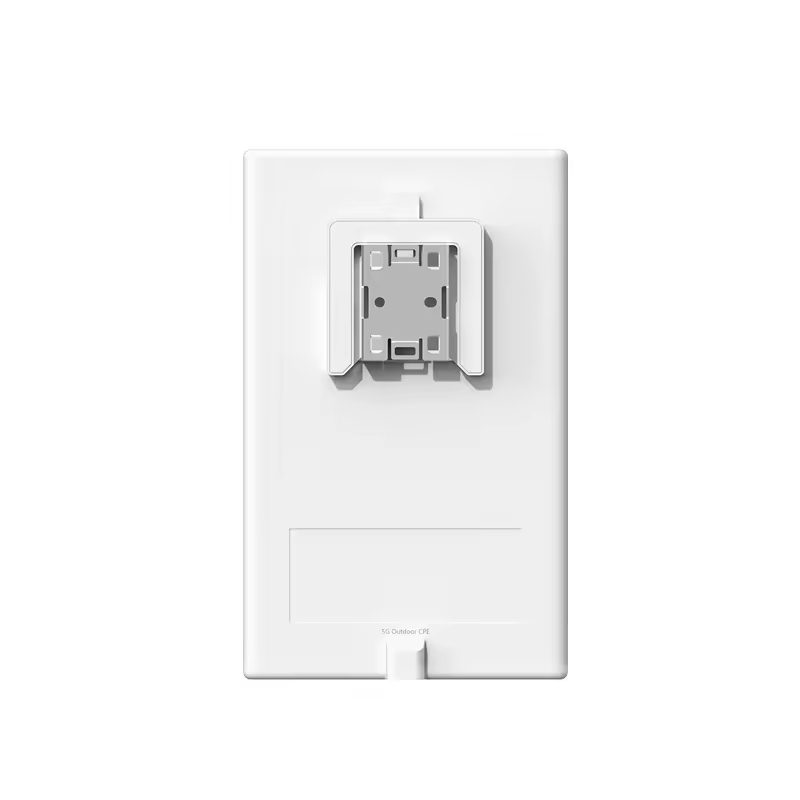

Supports wall mounted and pole mounted installation, suitable for a wide range of application environments.
Highly acclaimed lock frequency lock community function
Lock specific frequency bands or communities as needed, match the best settings for the usage environment, and customize your own network experience.
App remote management
Support parental control, online behavior management, provide network blacklist and whitelist, and remote control through the app.
Real time control of device operation status and repair of network issues in the background, without the need for manual restart or network configuration, making internet access easier.
Key attributes
| function | VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | WiFi 802.11 ax | application | Outdoor |
| type | CPE | Antennas | built-in antennas |
| 5G Wi-Fi Transmission Rate | 2167Mbps | 2.4g wi-fi transmission rate | 1200 Mbps |
| max. lan data rate | 1750Mbps | Supports WPS | Yes |
| Supports WDS | No | wired transfer rate | 1000Mbps |
| lan ports | 2 | WAN Ports | 2 |
| with modem function | No | Encryption Type | WPA2 |
| private mold | No | standards and protocols | Wi-Fi 802.11g |
| products status | New | place of origin | Guangdong, China |
Based information

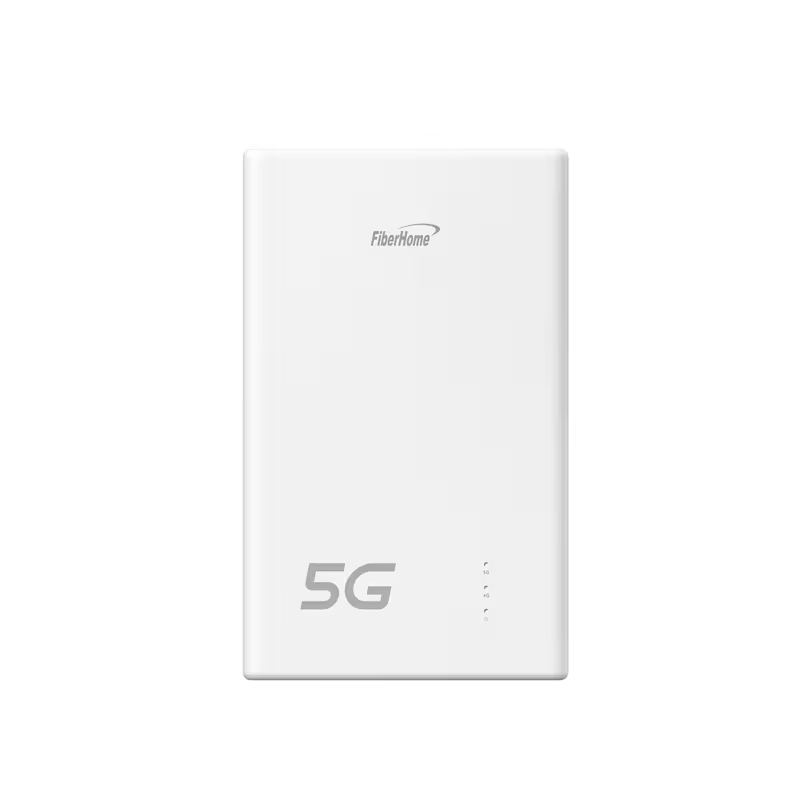

1. Model: LG6121D
2. Processor: Quad-cores MTK T750
3. Body material: ABS/PC
4. Bare machine size: 230 (length) * 141 (width) * 45.5 (height) mm
5. Bare weight: approximately 760g
Specification information
1. Number of Ethernet ports: 1 2.5G LAN port (supporting reverse power supply)
2. Waterproof and dustproof rating: IP67
3. Antenna type: 5G NR, 4G LTE
4. Wireless frequency band:
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78
4G FDD : B1/B3/B5/B7/B8/B20/B28/B32
4G TDD : B38/B40/B41/B42/B43
Functional features:
1. 5G gigabit broadband, can be opened with a card, 2.5G network port, IPv6.
2. Dual mode 5G, 4G full network, supporting NSA and SA.
3. 1GB DDR4 memory, 1GB flash memory.
4. High gain antenna enhances 5G .
5. Efficient heat dissipation ensures stable operation.
6. App remote control, internet , parental control.
7. Frequency locking and cell locking function: Lock specific frequency bands or cells as needed.
8. Applicable scenarios: Network requirements for building offices, outdoor monitoring, agriculture, forestry, animal husbandry, fishing, field operations, and other scenarios.
9. Installation methods: wall mounted installation, pole mounted installation.
Work environment
1. Power adapter: 48V, 0.3A output
2. Equipment power consumption:<14.4W
3. Working temperature: -40 ° C~55 ° C (no solar radiation)
4. Storage temperature: -40 ° C~70 ° C
Packing list:
1. 5G wireless data terminal
2. The power adapter
3. Network cable 1.5 meters
4. SIM card cover assembly (CAT5E Ethernet cable 2/SIM card cover) (length 10 meters)
5. user ‘s manual
6. Installation bracket
7. Hug hoop
8. M6 expansion screw component (sleeve /screw )
