Key attributes
| function | VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | WiFi 802.11 ax | application | Home |
| type | With 5G Sim Card | Antennas | built-in antennas |
| 5G Wi-Fi Transmission Rate | 2167Mbps | 2.4g wi-fi transmission rate | 3000 Mbps |
| max. lan data rate | 3000Mbps | Supports WPS | Yes |
| Supports WDS | No | wired transfer rate | 1000Mbps |
| lan ports | 3 | WAN Ports | 2 |
| with modem function | Yes | Encryption Type | WPA3 |
| private mold | No | standards and protocols | Wi-Fi 802.11ax |
| products status | OPEN-BOX | place of origin | Guangdong, China |
| Brand | NOKI A | SIM card slot | 1 SIM Card Slots |
| Product name | FastMile 5G Gateway 3 5G12-13W-A | Keywords | FastMile 5G Gateway 3 |
| Chipset | SDX55 | ||
* Fully self-contained, full featured indoor residential gateway
* 5G New Radio (NR) WAN connection with 11 dBi high gain antenna
* 4G WAN
* Carrier aggregation across supported 4G/5G bands
* 2.5 Gigabit Ethernet (GigE) WAN
* 3 GigE LAN
* Wi-Fi (3×3 802.11b/g/n, 4×4 802.11ac MU-MIMO) LAN
* Visual cues guide the consumer to the optimal location for 5G performance in the home
* Delivers gigabit home services with 5G NR
* Automatic 5G antenna alignment ensures maximum signal and minimal noise
* High gain antenna maximizes performance and conserves spectral assets
* Reduced deployment costs with subscriber self-installation
* Extends 5G speeds throughout the home with Nokia WiFi beacons
* Part of Nokia end-to-end 5G solutionNo-kia FastMile 5G Gateway Specifications:
* Product type: 5G Wireless Gateway
* Model Number: 5G-24W-A
* Physical
– Height: 240 mm (9.4 in)
– Width: 140 mm (5.5 in)
– Weight: 2.2 kg (4.9 lb)*Â Operating environment
– Temperature: 0°C to 45°C (32°F to 113°F)* Power requirements
– 12 V DC
– Consumption: 41 W maximum DC power supply*Â Network terminations Cellular WAN
–5G NR (3GPP)
–4G/Long Term Evolution (LTE)
–SIM slot (size: 4FF/nano)
– 2.5 GigE WAN
*Â Connectivity interfaces
– Wi-Fi (802.11b/g/n, 802.11ac)

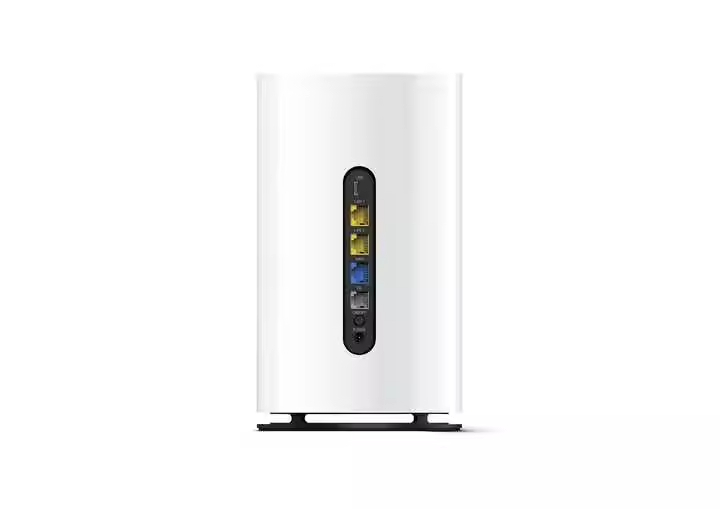

– Three RJ-45 GigE LAN ports
– USB 3.0 Type A port
*Â Main functions
– 5G high gain antenna, automated antenna alignment, gain in n78: 11 dBi maximum
– Multiband omni antenna for LTE
– Integrated residential gateway
– Central point of mesh network with Nokia WiFi Beacon 3s
* Radio – cellular
• 3GPP, release December 15 – 5G NR Non-Standalone (NSA) option 3a, 3x
• 5G NR interface band n78 TD 3500 MHz(3300 MHz – 3800 MHz)
• Dual connectivity (EN-DC)
–1 LTE + DC 5G (1+n78, 3+n78, 7+n78, 28+n78)
–2 LTE + DC 5G (1+3+n78, 1+7+n78, 3+7+n78)
–3 LTE + DC 5G (1+3+7+n78)
• Downlink (DL) 4×4 multiple input, multiple output(MIMO) and 256 QAM
• Uplink (UL) 1×1 single input, single output (SISO)and 64 QAM
• Supported carrier bandwidths
–5G: 20 MHz, 40 MHz, 60 MHz, 80 MHz,100 MHz
–4G/LTE: 5 MHz, 10 MHz, 15 MHz, 20 MHz,
– 4G Band: FDD B1 (2100 MHz), B3 (1800 MHz),B7 (2600 MHz), B28 (700 MHz), TDD B40(2300 MHz)
– Extensive carrier aggregation between supported bands
* Radio – Wi-Fi
– Dual-band concurrent IEEE 802.11b/g/n 3×3 2.4 GHz and 802.11ac 4×4 5 GHz
– Mesh topology with Nokia WiFi Beacon 3s
– Seamless roaming (IEEE 802.11k, 802.11v)
*Â Security
– Adheres to strict Nokia security standards
– Wi-Fi Protected Access (WPA) support, including WPA Pre-Shared Key (PSK) and WPA2
*Â Management
– Multicolor LEDs for status view
– Web user interface (WUI) for local configurations
– TR-69 auto-configuration server (ACS) access for remote device management
*Â Buttons
– Power on/off
– Wi-Fi Protected Setup (WPS)
– Reset
