As well as providing high speed 5G Internet using the embedded 5GF modem, along with high speed LAN and WiFi, the main advantage of the Zyxel NR5103 router is that is has 4 x external antenna adapters (TS9) which means that you can easily add an outdoor or directional 5G Antenna to help with the 5G signal reception. This external antenna connection is ideal when the router is located indoors where there is a poor signal and there is a much better outdoor signal.

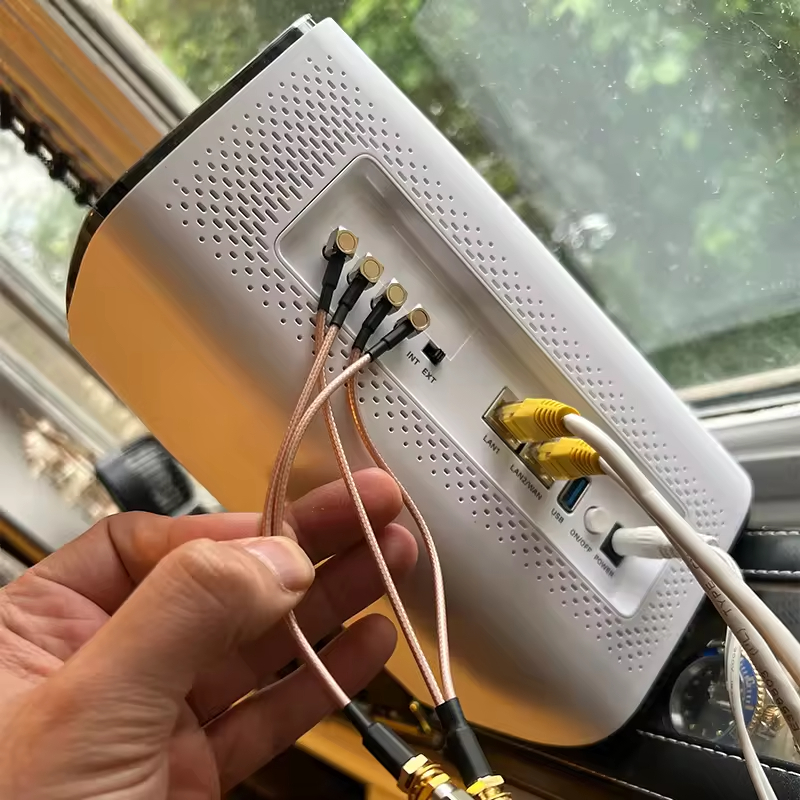

A High Gain Outdoor 5G Antenna can be installed and the cables run to the router. Having 4 x TS( connectors on the rear of the router also means that the use of a 4×4 MiMo 5G antenna is viable giving users more flexibility in the choice of external antennas including the use of popular 4×4 MIMO antennas. However, the Zyxel NR5103 5G router still uses TS9 connectors so many external antennas will require TS9 to SMA adapters. Lightning-fast internet connectivity
The Zyxel NR5103 supports 5G NR DL speeds of 4.67 Gbps* and 4G LTE DL speeds of up to 1.6 Gbps*. Wide-spectrum bandwidth accelerates internet speed and reduces network latency for premium and time-sensitive mobile broadband services.
WiFi 6 (11ax) technology for superior performance and coverage with WiFi 6 and EasyMesh R2 certification
Compliant with the latest WiFi 6 (802.11ax) standard, the Zyxel NR5103 offers speeds of up to 3.6 Gbps with 4×4 UL/DL MU-MIMO. With the uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and beamforming technologies, the NR5103 delivers premium speed for multi-streaming data access. Along with the WiFi 6 and EasyMesh R2 certification, the NR5103 empowers service providers to deliver an optimal WiFi experience without dead zones.
Strengthen your competitive edge with Fixed Wireless Access (FWA)
Deploying NR5103 as part of FWA allows you to extend your 4G/5G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection.
SA/NSA dual-mode compliant
The Standalone (SA) and Non-Standalone (NSA) compliant architecture of NR5103 improves your operational efficiency during 5G migration, accelerating your 5G service rollouts.
Remote management and upgrade
Through the 4G/5G radio interface, the NR5103 supports TR-069, and remote GUI to be fully configurable. Firmware Over-The-Air (FOTA) support enables remote firmware upgrades and troubleshooting through events triggered by the operators.
Easy network setup and management with Zyxel Air
The NR5103 comes with a subscriber app – Zyxel Air. The intuitive user interface of Zyxel Air provides your customers with the necessary assistance from device setup to routine management, minimizing service calls while enhancing user satisfaction.
Key attributes
| function | Voip, FireWall, QoS, VPN | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | 802.11ac | application | Multi-service |
| type | Wireless | 5G Wi-Fi Transmission Rate | 2167Mbps |
| 2.4g wi-fi transmission rate | 1200 Mbps | max. lan data rate | 1900Mbps |
| Supports WPS | Yes | Supports WDS | Yes |
| wired transfer rate | 1000Mbps | lan ports | 1 |
| with modem function | Yes | Encryption Type | WPA2-PSK, WPA-PSK |
| private mold | No | standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac |
| products status | New | place of origin | Guangdong, China |
| 5G Band | n1.n3.n5.n7.n8.n20.n28.n38.n40.n41.n77.n78 | Product name | ZYXEL NR5103E 3 Logo |
| Warranty | 1 Year | Color | White |
| Type | Wireless | Download Speed | 4.7GBPS |
| Upload Speed | 250Mbps | 4G/LTE Bands | B1.B3.B5.B7.B8.B20.B28.B32.B38.B40.B41.B42.B43 |
| 4G LTE (CAT 19) | Download Speed:1.6GBPS /Upload Speed: 150Mbps | Number of Wi-Fi Connections Supported | 64 |
Contents:

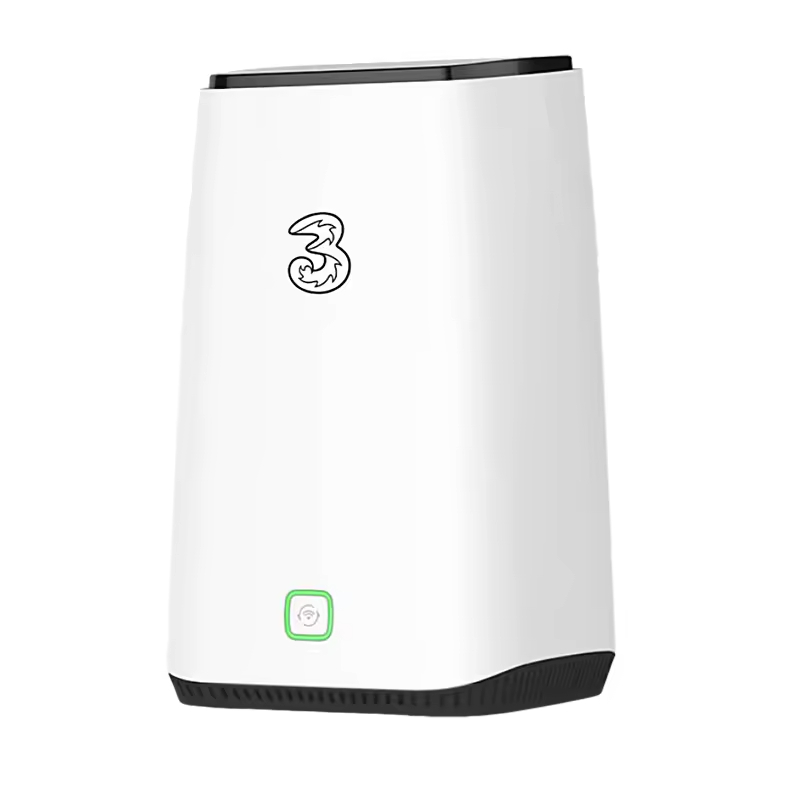

1 x Zyxel NR5103E 5G Wi-Fi 6 Router (White)
1 x Quick Start Guide

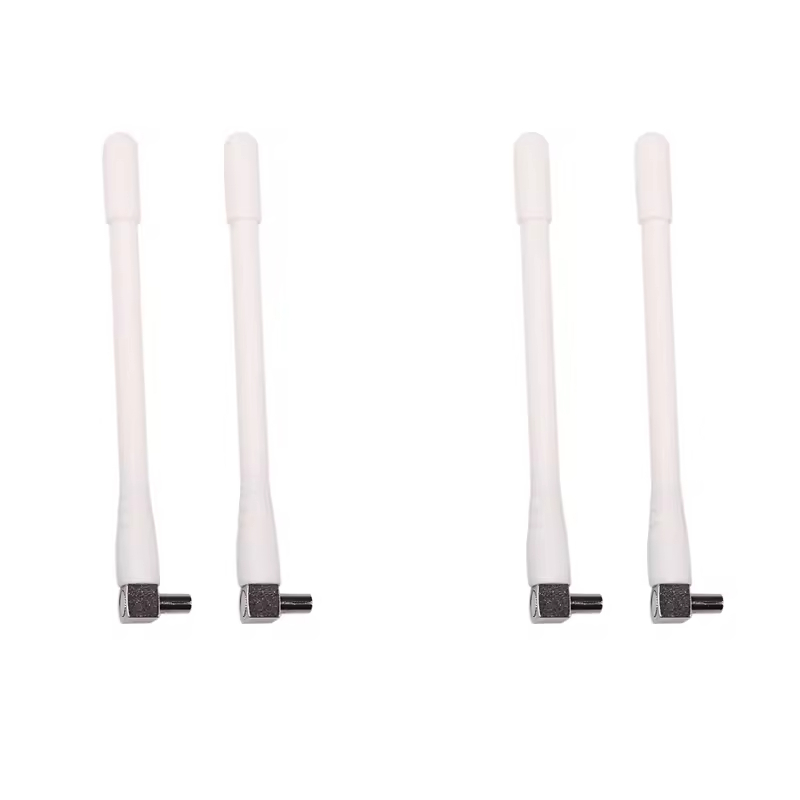

4 x External Antennas (Optional)
Condition:
All products are Original Zyxel NR5103E THREE LOGO 5G Routers and UNLOCKED to any other carriers which has the same 5G/4G band.
Specification of Zyxel NR5103E 5G Router:
5G NR, DL 4.7Gbps
NSA & SA modes
Wi-Fi 6 (11ax)
Bridge Mode
Band Steering
DL 4×4 MIMO
Wi-Fi 6 & EasyMesh R2 certified
Remote management
FOTA
Zyxel mobile app
Speeds:
5G:
Download Speed: 4.7GBPS
Upload Speed: 250Mbps
4G LTE (CAT 19):
Download Speed:1.6GBPS
Upload Speed: 150Mbps
Operating Frequencies:
5G Bands: Full NSA and SA 5G: n1.n3.n5.n7.n8.n20.n28.n38.n40.n41.n77.n78
4G/LTE Bands: B1.B3.B5.B7.B8.B20.B28.B32.B38.B40.B41.B42.B43
Connection Types:
Wireless Frequency Band: 2.4GHz & 5GHz, dual-band auto-selection
Number of Wi-Fi Connections Supported: 64
Transmission Standard: WiFi 6 (802.11ax, 4×4 UL/DL MU-MIMO
Antenna Type: External 5G/LTE main & diversity antennas (Optional)

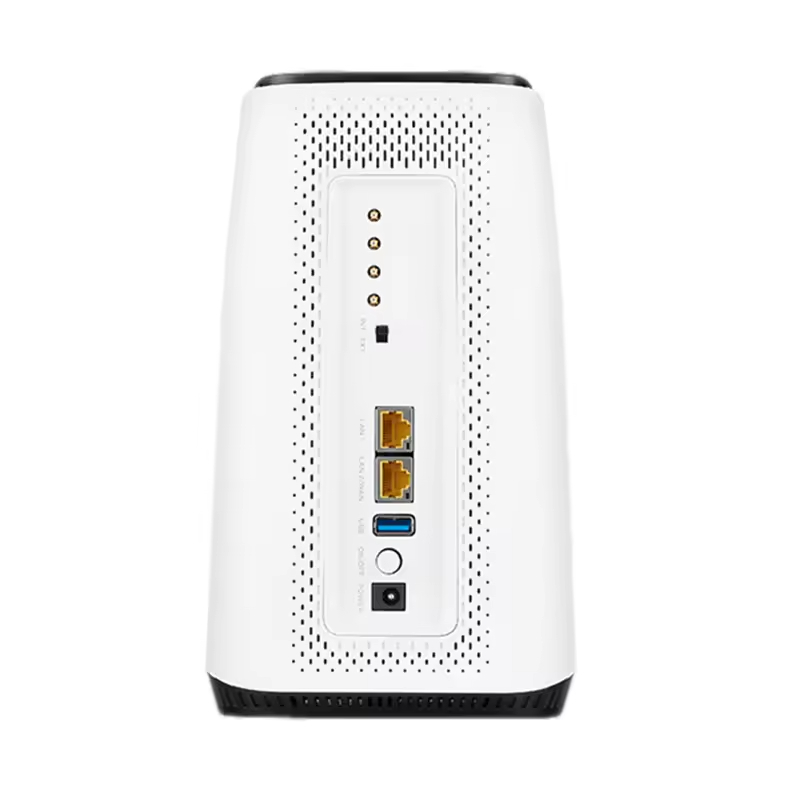

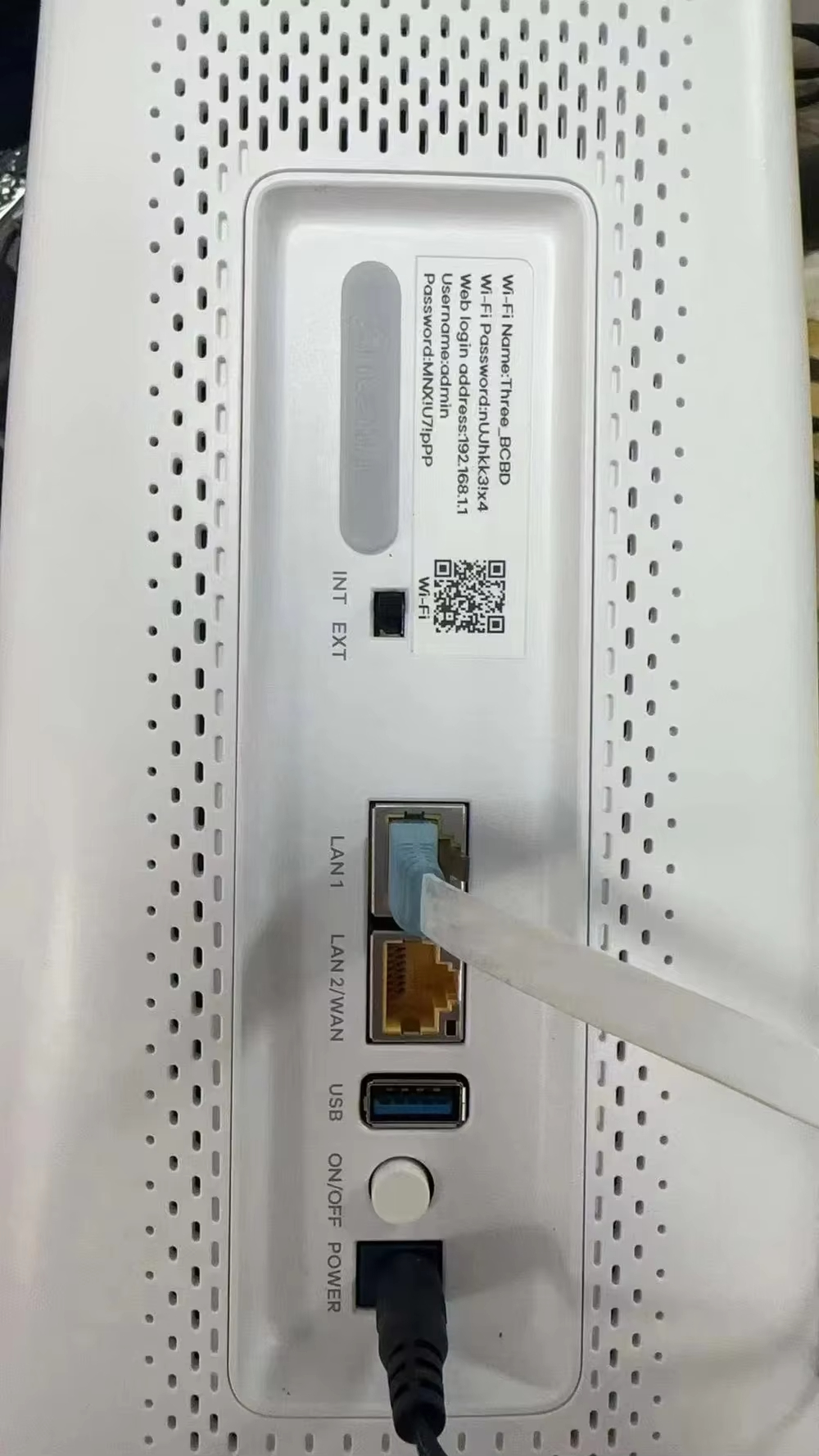

Ports:
1 x Power Adaptor Port
1 x LAN GE Port (RJ45)
1 x LAN/WAN GE Port (RJ45)
4 x External LTE Antenna Ports (Antennas Optional)
1 x -SIM card slot
1 X USB Port 3.0
Dimensions:
227 x 134mm x 125mm
Weight:
650g
Compatible Operating Systems:
Windows: 7/8/8.1,Vista, SP1/SP2,XP,SP3
Mac: OS X 10.7/10.8/10.9 with latest upgrades
Linux
Environment:
Temperature:
Operating temperature: 0 °C ~ 40 °C,
Storage temperature: -20 °C ~ +70 °C
Humidity: 5% ~ 95% (non-condensing)
