Lightning-fast internet connectivity
The NR5103EV2 supports 5G NR DL speeds of 4.67 Gbps* and 4G LTE DL speeds of up to 1.6 Gbps*, increasing internet speed and reducing network latency. Wide-spectrum bandwidth accelerates internet speed and reduces network latency for premium and time-sensitive mobile broadband services.
The NR5103EV2 supports 5G NR DL speeds of 4.67 Gbps* and 4G LTE DL speeds of up to 1.6 Gbps*, increasing internet speed and reducing network latency. Wide-spectrum bandwidth accelerates internet speed and reduces network latency for premium and time-sensitive mobile broadband services.
WiFi 6 (11ax) technology for superior performance and coverage
Compliant with WiFi 6 (802.11ax) standard, the NR5103EV2 offers speeds of up to 1,774 Mbps with 2×2 UL/DL MU-MIMO. With the uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and beamforming technologies empower the NR5103EV2 to deliver premium speed for multi streaming data access and optimal WiFi experience without dead zones.
Compliant with WiFi 6 (802.11ax) standard, the NR5103EV2 offers speeds of up to 1,774 Mbps with 2×2 UL/DL MU-MIMO. With the uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA), and beamforming technologies empower the NR5103EV2 to deliver premium speed for multi streaming data access and optimal WiFi experience without dead zones.
Strengthen your competitive edge with Fixed Wireless Access (FWA)
Deploying NR5103EV2 as part of FWA allows you to extend your 4G/5G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection.
Deploying NR5103EV2 as part of FWA allows you to extend your 4G/5G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection.
SA/NSA dual-mode compliant
The Standalone (SA) and Non-Standalone (NSA) compliant architecture of NR5103EV2 improves your operational efficiency during 5G migration, accelerating your 5G service rollouts.
The Standalone (SA) and Non-Standalone (NSA) compliant architecture of NR5103EV2 improves your operational efficiency during 5G migration, accelerating your 5G service rollouts.
Remote management and upgrade
Through the 4G/5G radio interface, the NR5103EV2 supports TR-369, TR-069, and remote GUI to be fully configurable. Firmware Over-The-Air (FOTA) support enables remote firmware upgrades and troubleshooting through events triggered by the operators.
Through the 4G/5G radio interface, the NR5103EV2 supports TR-369, TR-069, and remote GUI to be fully configurable. Firmware Over-The-Air (FOTA) support enables remote firmware upgrades and troubleshooting through events triggered by the operators.
Sustainable product design
Zyxel commits to a greener planet and improving the community’s environmental well-being. The NR5103EV2 is constructed from 65% PCR plastic material, while the packaging is made from 60% recycled paper with soy ink for Volatile Organic Compounds (VOC)-free printing.
Zyxel commits to a greener planet and improving the community’s environmental well-being. The NR5103EV2 is constructed from 65% PCR plastic material, while the packaging is made from 60% recycled paper with soy ink for Volatile Organic Compounds (VOC)-free printing.
Easy network setup and management with Zyxel Air
The NR5103EV2 comes with a subscriber app – Zyxel Air. The intuitive user interface of Zyxel Air provides your customers with the necessary assistance from device setup to routine management, minimizing service calls while enhancing user satisfaction.
The NR5103EV2 comes with a subscriber app – Zyxel Air. The intuitive user interface of Zyxel Air provides your customers with the necessary assistance from device setup to routine management, minimizing service calls while enhancing user satisfaction.
Key attributes
| function | FireWall | wifi supported frequency | 2.4G & 5G |
| WiFi Transmission Standard | 802.11ac, 802.11n, 802.11g, 802.11b | application | SOHO |
| type | Wireless | Antennas | 2 external antennas |
| 5G Wi-Fi Transmission Rate | 2167Mbps | 2.4g wi-fi transmission rate | 1200 Mbps |
| max. lan data rate | 1900Mbps | Supports WPS | Yes |
| Supports WDS | No | wired transfer rate | 10/100/1000Mbps |
| lan ports | 2 | WAN Ports | 1 x10/100/1000Mbps |
| with modem function | Yes | Encryption Type | WPA2-PSK, WPA-PSK |
| private mold | Yes | standards and protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a |
| products status | New | place of origin | Guangdong, China |
| Country Version | EU Version | Product name | 5G Wifi Router |
| SIM card slot | 1 SIM Card Support | Frequency 5G | n1/n3/n5/n7/n8/n20/n28/n77/n78 |
| Frequency bands 4G | B1/B3/B5/B7/B8/B20/B28/ B32 | Product Type | 5G Wireless CPE Router |
| Network mode | NSA/SA | Network | 5G/4G |
| Keywords 1 | 5G Wifi CPE Router | Keywords | 5G SIM Router |
| Standard | IEEE802.11n/b/g/ac/ax |
System specifications
IP networking
* Supports IPv4/IPv6 dual stack (NDP IPv6)
* DHCP Client/server
* Virtual Private Network (VPN)
pass-through
* Supports NAT/NAPT
* Supports DMZ
* Multiple APNs
* Supports port forwarding
* Supports IPv4/IPv6 dual stack (NDP IPv6)
* DHCP Client/server
* Virtual Private Network (VPN)
pass-through
* Supports NAT/NAPT
* Supports DMZ
* Multiple APNs
* Supports port forwarding
Routing
* Supports bridge and router modes
* Supports remote management under bridge mode
* Static/dynamic route setting
* Supports bridge and router modes
* Supports remote management under bridge mode
* Static/dynamic route setting
IP firewall
* DoS attack detection
* Supports SPI
* Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
* Filters LAN MAC address
* Filters LAN IP address
* DoS attack detection
* Supports SPI
* Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
* Filters LAN MAC address
* Filters LAN IP address
Management
* Supports local/remote device management and firmware upgrade via TR-069 and web GUI
* PIN/PUK management
* APN management
* Operating frequency band selection
* CLI/SSH (local and remote SSH access)
* Supports UPnP IGD
* Supports local/remote device management and firmware upgrade via TR-069 and web GUI
* PIN/PUK management
* APN management
* Operating frequency band selection
* CLI/SSH (local and remote SSH access)
* Supports UPnP IGD
* Supports web server API to support APPs
* Supports Zyxel Air app (iOS and Android) for easy installation and local management)
* Supports Zyxel Air app (iOS and Android) for easy installation and local management)
WLAN feature
* Auto channel selection
* WiFi Protected Setup (WPS)
* WiFi Multimedia (WMM)
* WiFi-enabled devices: up to 64
* Security: none, WPA2-Personal, WPA/ WPA2, WPA3
* MAC address filtering with 64 address supported
* Auto channel selection
* WiFi Protected Setup (WPS)
* WiFi Multimedia (WMM)
* WiFi-enabled devices: up to 64
* Security: none, WPA2-Personal, WPA/ WPA2, WPA3
* MAC address filtering with 64 address supported
* Multiple SSIDs/hide SSIDs
* WLAN scheduling
* WLAN scheduling
Hardware specifications
5G NR interface
* 3GPP Release 15 standard-compliant
* Supports both NSA and SA modes
FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78
TDD: n38/n40/n41
* Supports DL 4×4 MIMO: n1/n3/n7/n38/ n40/n41/n77/n78
* Data rates:
5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
Class 2 (26 dBm) for 5G NR n41/n77/ n78
Class 3 (23 dBm) for rest FDD/TDD NR bands
* 3GPP Release 15 standard-compliant
* Supports both NSA and SA modes
FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78
TDD: n38/n40/n41
* Supports DL 4×4 MIMO: n1/n3/n7/n38/ n40/n41/n77/n78
* Data rates:
5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
Class 2 (26 dBm) for 5G NR n41/n77/ n78
Class 3 (23 dBm) for rest FDD/TDD NR bands
4G LTE interface
* 3GPP UE Category 19 standardcompliant
* Supports frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/ B32
LTE-TDD: B38/B40/B41/B42/B43
* Supports DL 4×4 MIMO: B1/B3/B7/B38/ B40/B41/B42/B43
* Peak data rates:
Max. DL 1.6 Gbps/UL 211 Mbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands
* 3GPP UE Category 19 standardcompliant
* Supports frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/ B32
LTE-TDD: B38/B40/B41/B42/B43
* Supports DL 4×4 MIMO: B1/B3/B7/B38/ B40/B41/B42/B43
* Peak data rates:
Max. DL 1.6 Gbps/UL 211 Mbps*
* Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
* Output power:
Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands
WiFi air Interface
* Wireless standard: IEEE 802.11b/g/n/a/ ac/ax
* Wireless speeds:
Link rates up to 1,774 Mbps* for 802.11ax DBDC
* Internal WiFi antenna:
Dual-band & concurrent 2×2 + 2×2
* WiFi antenna gain:
≤ 4 dBi for 2.4 GHz
≤ 5 dBi for 5 GHz
* Wireless standard: IEEE 802.11b/g/n/a/ ac/ax
* Wireless speeds:
Link rates up to 1,774 Mbps* for 802.11ax DBDC
* Internal WiFi antenna:
Dual-band & concurrent 2×2 + 2×2
* WiFi antenna gain:
≤ 4 dBi for 2.4 GHz
≤ 5 dBi for 5 GHz
5G/4G antennas
* Two TS9 connectors for external antennas
* Four embedded omni-directional antennas
* Antenna Spec (Peak Gain)
700 MHz ~ 960 MHz: 2 dBi
1.4 GHz ~ 2.7 GHz: 5 dBi
3.3 GHz ~ 4.2 GHz: 5 dBi
* Two TS9 connectors for external antennas
* Four embedded omni-directional antennas
* Antenna Spec (Peak Gain)
700 MHz ~ 960 MHz: 2 dBi
1.4 GHz ~ 2.7 GHz: 5 dBi
3.3 GHz ~ 4.2 GHz: 5 dBi

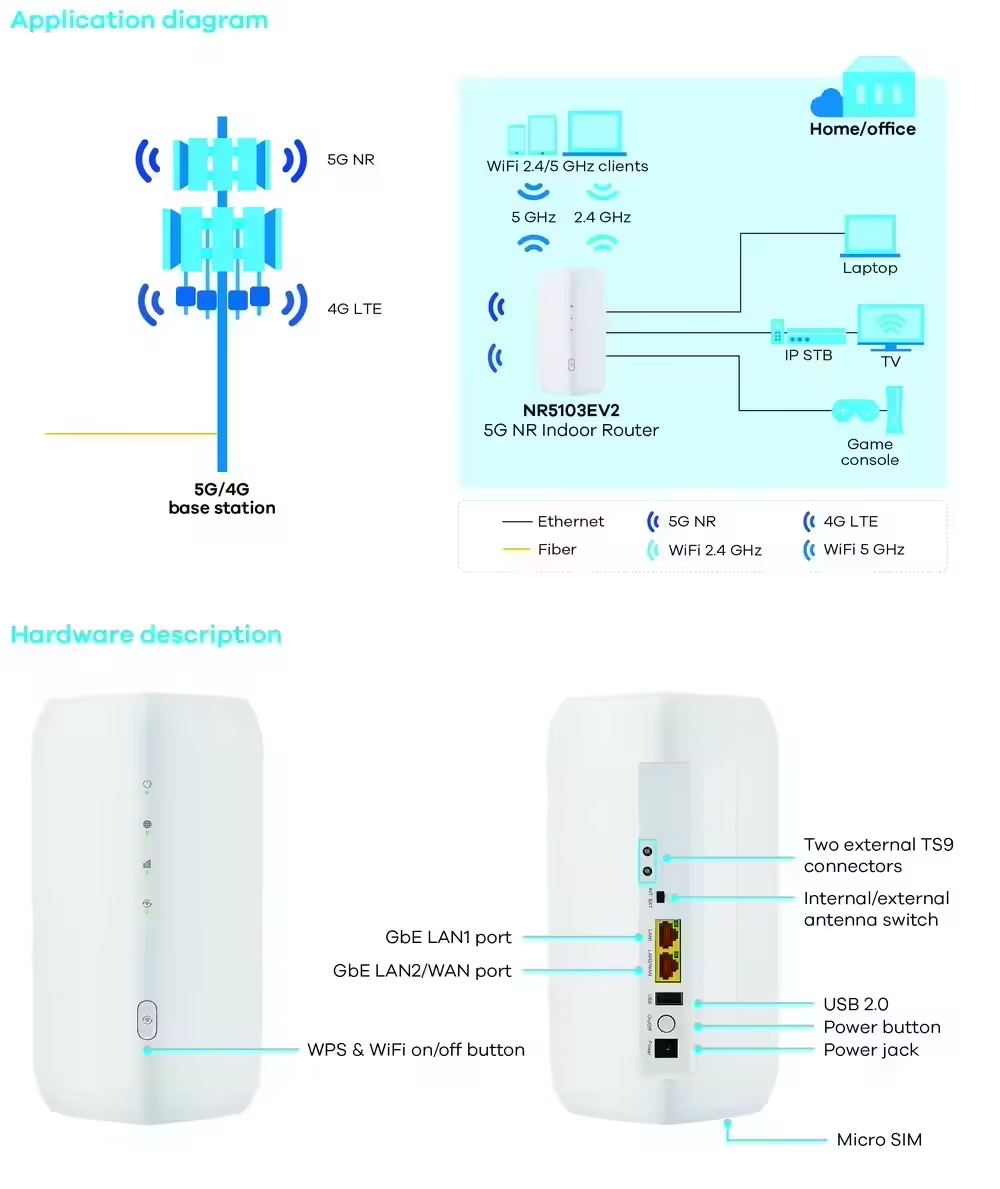

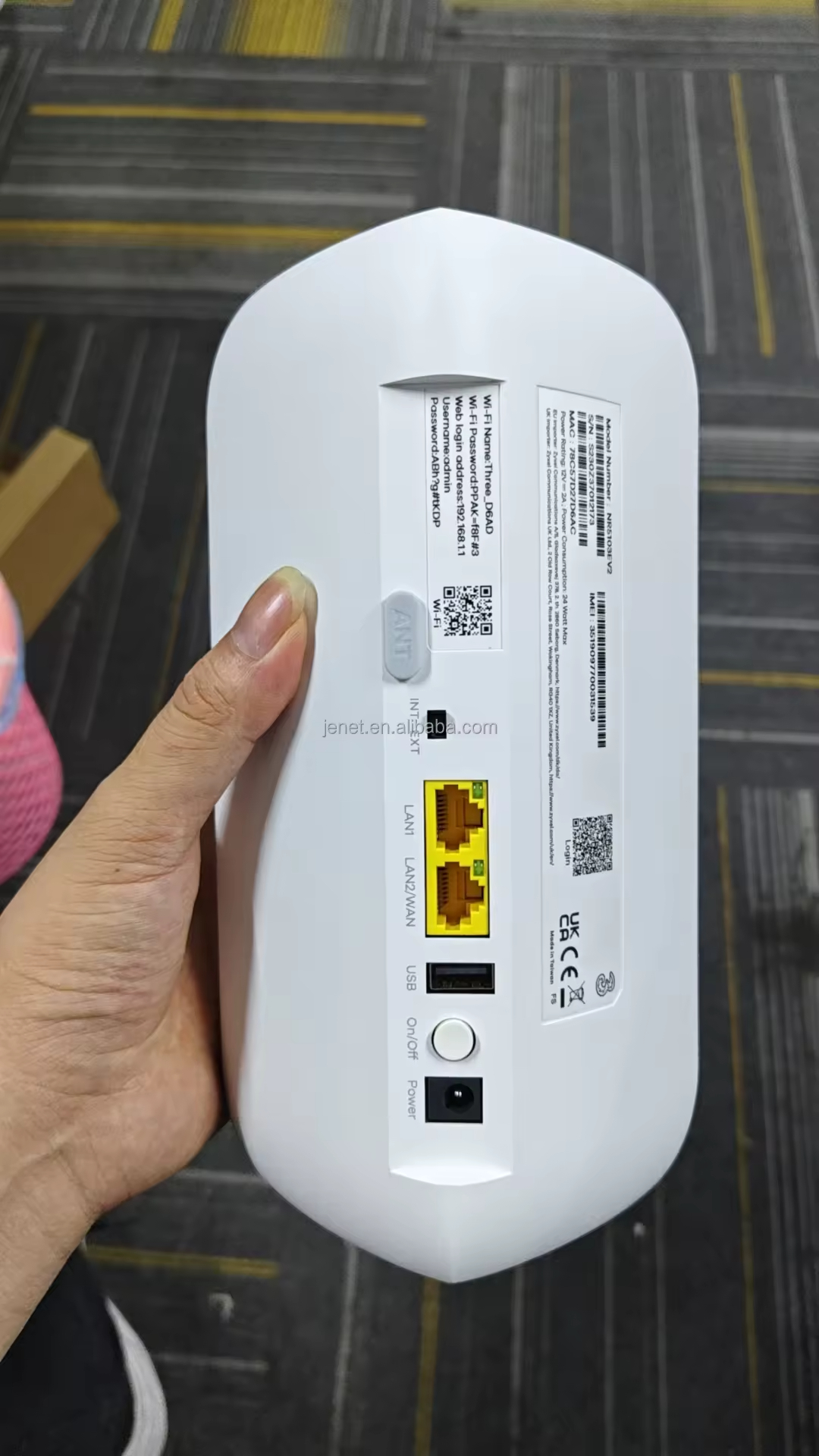

Hardware interface
* Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port

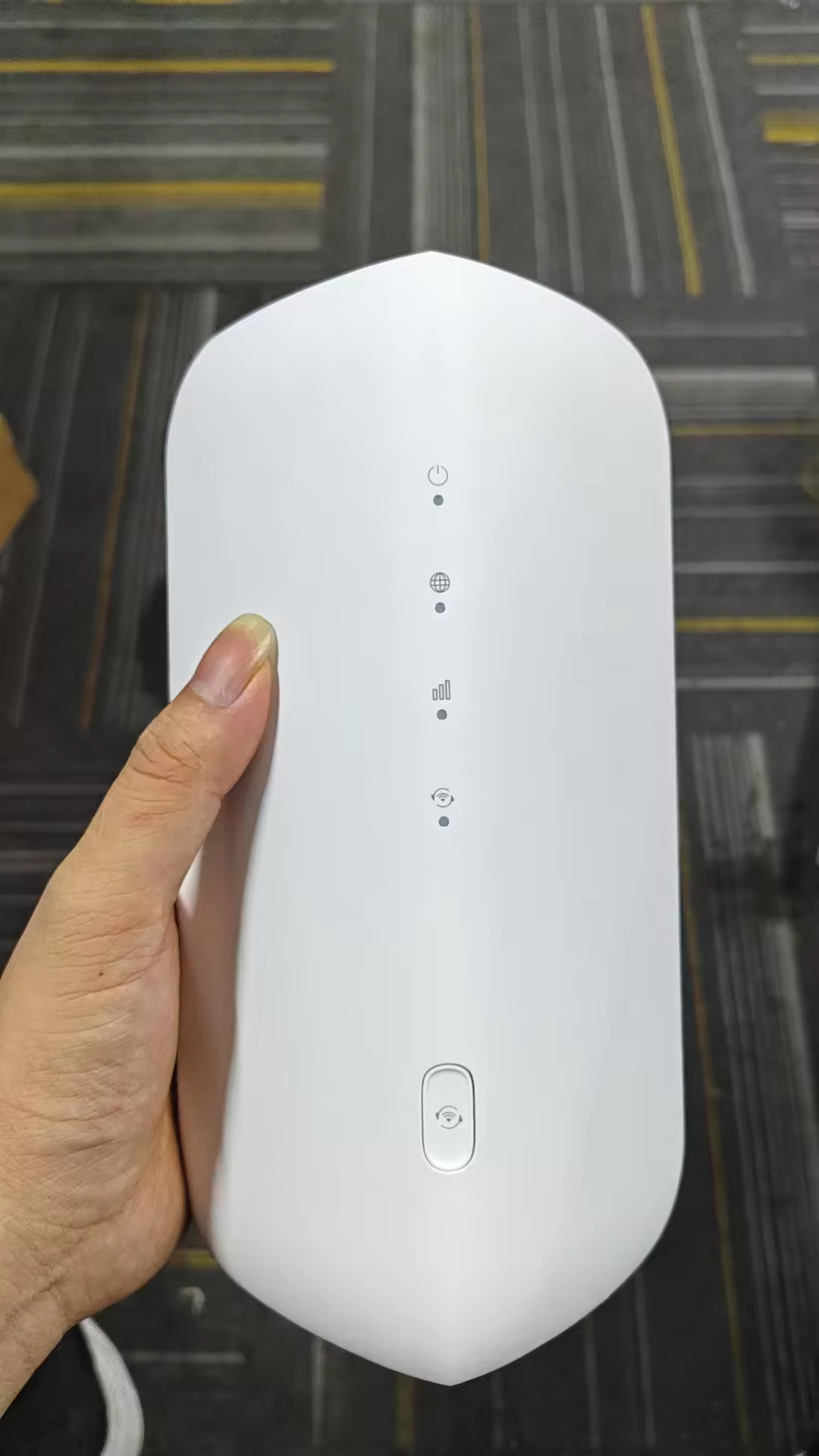

* LED indicators:
Power indication
Signal strength
Internet connection status
WiFi AP status
WPS status
* Two external antenna connectors (TS9 type)
* One 3FF/Micro SIM card slot
* One power on/off button
* One WPS/WiFi on/off button
* One reset button
* One Int/Ext antenna switch
* One USB 2.0 host port for file sharing
* Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
* LED indicators:
Power indication
Signal strength
Internet connection status
WiFi AP status
WPS status
* Two external antenna connectors (TS9 type)
* One 3FF/Micro SIM card slot
* One power on/off button
* One WPS/WiFi on/off button
* One reset button
* One Int/Ext antenna switch
* One USB 2.0 host port for file sharing
Power consumption
* 24 W (peak)
* 24 W (peak)
Physical specifications
* Item dimensions (WxDxH): 103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)
* Item weight: 1145 g (2.53 lb.)
* Packing dimensions (WxDxH): 252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)
* Packing weight: 2450 g (5.40 lb.)
* Item dimensions (WxDxH): 103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)
* Item weight: 1145 g (2.53 lb.)
* Packing dimensions (WxDxH): 252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)
* Packing weight: 2450 g (5.40 lb.)
Environmental specifications
Operating environment
* Temperature: -10°C to 40°C (14°F to 104°F)
* Humidity: 10% to 90% RH (non-condensing)
Storage environment
* Temperature: -30°C to 70°C (-22°F to 158°F)
* Humidity: 0% to 95% (non-condensing)
Operating environment
* Temperature: -10°C to 40°C (14°F to 104°F)
* Humidity: 10% to 90% RH (non-condensing)
Storage environment
* Temperature: -30°C to 70°C (-22°F to 158°F)
* Humidity: 0% to 95% (non-condensing)
